About This Product

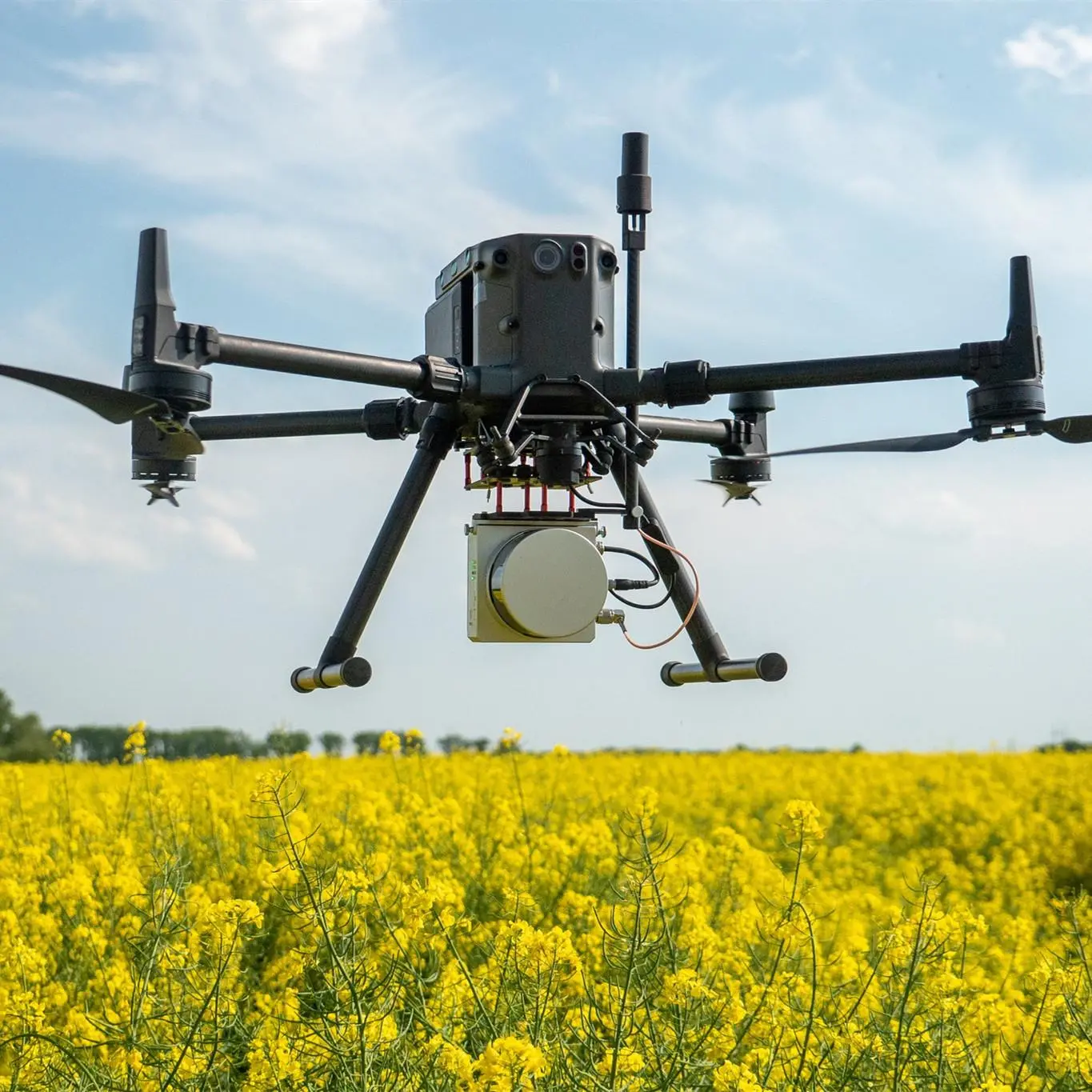

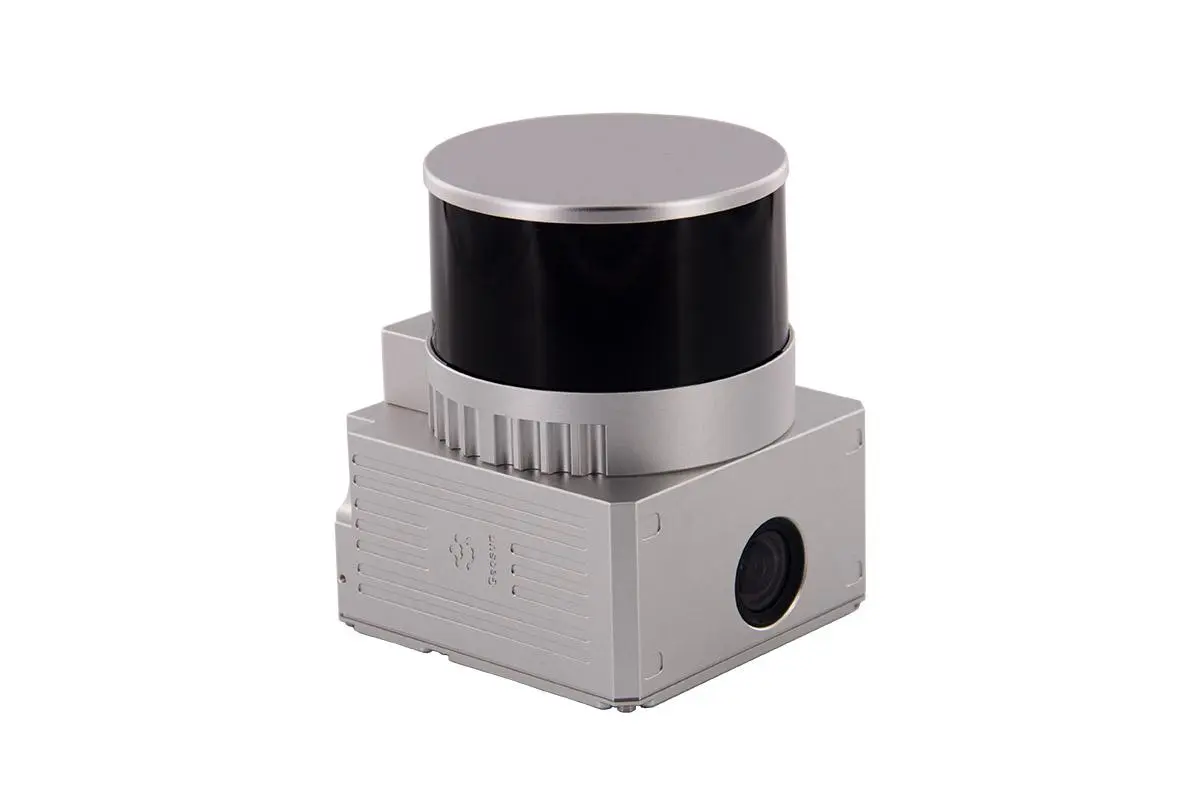

The Geosun GS-130X is a professional UAV LiDAR mapping payload that combines laser scanning, GNSS positioning, inertial navigation and an RGB mapping camera into a single compact system. It is designed to collect detailed three-dimensional information from the air and can also be deployed on suitable vehicle platforms.

The system uses a 32-channel LiDAR sensor with a 360° scanning field and high-speed point acquisition. Its integrated positioning system helps associate the captured laser measurements with accurate flight trajectory information, making the GS-130X suitable for terrain mapping, vegetation surveys and infrastructure inspection.

Features

• Integrated LiDAR, GNSS/INS and RGB camera
• 32-channel laser scanning
• Up to 120 m measurement range
• 360° adjustable scanning field
• Up to 1.28 million points per second
• Dual-echo data acquisition
• 905 nm Class 1 laser
• Hesai XT32 laser sensor
• 200 Hz positioning update rate
• High-precision attitude measurement
• Built-in 26 MP mapping camera
• 83° camera field of view
• Supports multi-rotor and VTOL platforms
• Can also support vehicle-based operations
• 64 GB internal storage with TF-card expansion
• Compatible with Geosun trajectory and point-cloud processing software
• Suitable for true-color point-cloud generation
