Mauch 003: PL-200 Sensor Board (200A) with CFK Enclosure

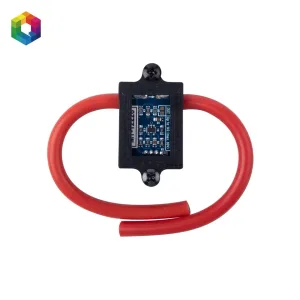

The Mauch PL-200 Sensor Board (003) is a high-precision current and voltage measurement solution designed for demanding UAV and robotics applications. Built around the reliable Allegro ACS770-250U Hall-effect sensor, this board supports up to 200A current measurement and up to 60V input voltage, depending on configuration.

200A – Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS770-250U.

Voltage range is up to 14S (60V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the manual page for more details.

This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2.

Connected to the sensor are 2x10cm AWG10 wire (red) as a standard.

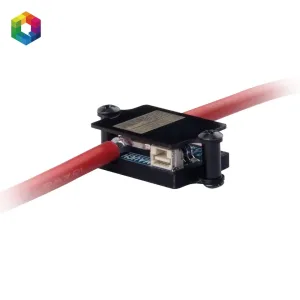

REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400)

Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 17g (with 2x 10cm 10AWG)

With CFK enclosure = 43.5 x 23.0 x 15mm / 22g (with 2x 10cm 10AWG)

Delivery in PP box: 55 x 55 x 20mm / 40g

Delivery without sensor cable (comes with the BEC’s), with ABS/Enclosure.

Parameter Details
Model Mauch 003: PL-200
Sensor Type Allegro Hall Sensor ACS770-250U
Current Measurement Up to 200A
Voltage Measurement Up to 14S (60V) with solder bridge open
Up to 7S (30V) with solder bridge closed
Connector Type Molex Clik-Mate 1.25mm / 4-pin (5023800400)
Wiring 2x 10cm 10AWG red wires
Compatibility Premium-Line BEC, Sensor Hub X2-V2
Without Enclosure 27.5 x 19.5 x 10.5mm / 17g
With CFK Enclosure 43.5 x 23.0 x 15mm / 22g
Packaging Box Dimensions 55 x 55 x 20mm
Total Package Weight 40g
Included Sensor board with CFK enclosure, no sensor cable
