₹4,399.00
200A Hall Effect Current Sensor (ACS770-250U)
Supports up to 14S (60V) voltage monitoring
Direct connection to Mauch Premium-Line BECs & Sensor Hub X2-V2
Durable CFK (carbon fiber composite) enclosure
Pre-attached 2x 15cm 8AWG wires for easy setup
Molex Clik-Mate 4-pin (5023800400) connector for clean integration
Delivered in a protective PP box (55 x 55 x 20mm)
The 004: PL-200/8 Sensor Board from Mauch Electronic is a high-precision 200A Current and Voltage measurement module built for demanding drone and robotics applications. Powered by the reliable Allegro ACS770-250U Hall Sensor, this sensor ensures stable and noise-free current measurement without a shunt resistor, offering long-term reliability and accuracy.
This board is compatible with Mauch Premium-Line BECs and Sensor Hub X2-V2 systems, making it a seamless addition to your professional drone setup.
With a CFK (carbon fiber reinforced) enclosure, this version is rugged, lightweight, and well-protected, ideal for harsh environments. Voltage measurement supports up to 14S (60V) when the solder bridge is open or 7S (30V) when closed. Always refer to the product manual before configuring.
Pre-installed with 2x 15cm 8AWG red silicone wires, the sensor is ready to integrate with your power distribution system.
200A – Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS770-250U.
Voltage range is up to 14S (60V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the manual page for more details.
This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2.
Connected to the sensor are 2x15cm 8AWG wire (red) as a standard.
REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400)
Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 45g (with 2x 15cm 8AWG)
With CFK enclosure = 43.5 x 23.0 x 15mm / 50g (with 2x 15cm 8AWG)

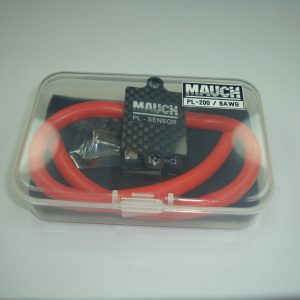

Delivery in PP box: 55 x 55 x 20mm / 60g
Delivery without sensor cable (comes with the BEC’s), with ABS/Enclosure.
1 × PL-200/8 Sensor Board with CFK Enclosure
Delivered in PP protective box (sensor cable not included)
Specification | |
---|---|
Model | 004: PL-200/8 Sensor Board |
Current Rating | 200A (Hall Effect Sensor - ACS770-250U) |
Voltage Range | Up to 14S (60V) with bridge openUp to 7S (30V) with bridge closed |
Wires Included | 2 × 15cm 8AWG (Red Silicone) |
Connector Type | Molex Clik-Mate 1.25mm / 4-pin (5023800400) |
Dimensions (Without CFK) | 27.5 × 19.5 × 10.5 mm |
Dimensions (With CFK) | 43.5 × 23.0 × 15 mm |
Weight (With CFK) | 50g (with wires) |
Packaging | PP box – 55 × 55 × 20mm / 60g |
Sensor Cable Included? | No (comes with BECs) |
