Sony ILX‑LR1 Industrial Installable Camera

Bring ultra‑high‑resolution imaging to your drones, robots and industrial systems with the Sony ILX‑LR1. Designed from the ground up for remote integration, this compact full‑frame camera delivers stunning detail, low‑noise performance, and seamless software control—perfect for inspection, surveying, mapping and beyond.

ILX-LR1

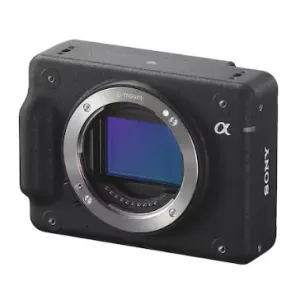

The ILX‑LR1 features a 35 mm full‑frame back‑illuminated Exmor R™ CMOS sensor with approximately 61.0 effective megapixels, paired with Sony’s powerful BIONZ XR™ image processing engine. Housed in a stripped‑down body without viewfinder, grip or battery compartment, it weighs just 243 g and measures 100 × 74 × 42.5 mm, making it ideal for applications where size, weight and flexibility are paramount. Lens mount, power and control ports are all designed for easy mounting and remote operation via the Sony Camera Remote Toolkit (lens sold separately).

Key Features

• 61 MP Full‑Frame Sensor
  Exmor R™ back‑illuminated CMOS delivers extraordinary sensitivity, dynamic range and low noise for both stills and video, with an ISO range of 100–32 000.

• High‑Speed Capture
  Up to 3 fps continuous shooting—ideal for drone‑based mapping and rapid survey missions.

• Compact, Lightweight Body
  Without viewfinder or onboard battery, the camera body is just 243 g, extending flight time and enabling use on smaller platforms.

• Full Remote Integration
  Control shutter, focus, live view and all camera settings via the Sony Camera Remote Toolkit SDK, enabling bespoke application development and synchronization with position data.

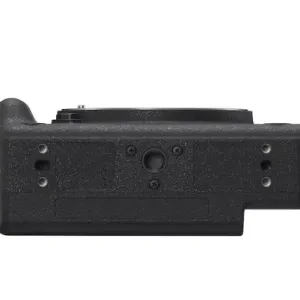

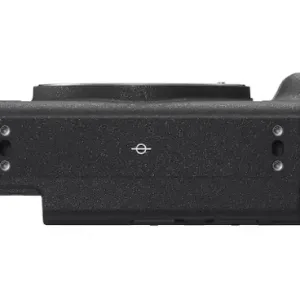

• Robust Mounting & Power Options

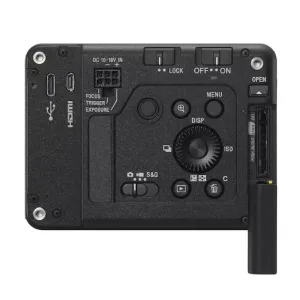

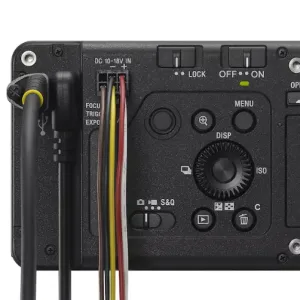

  Equipped with a single Power & Control Terminal for DC input, exposure‑out, focus and trigger signals; includes external status LEDs and a LOCK switch to prevent unintended setting changes.

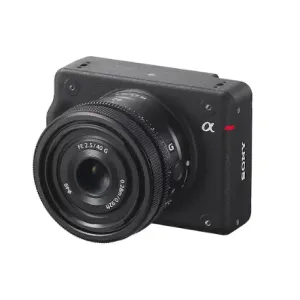

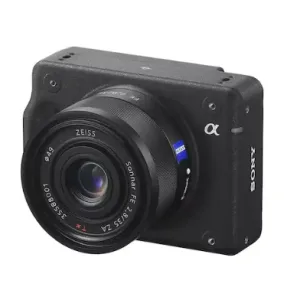

• Interchangeable E‑Mount Lenses
  Compatible with Sony’s extensive E‑mount lens lineup, letting you choose the perfect focal length and optical performance for each mission
