LightWare GRF-500 500m

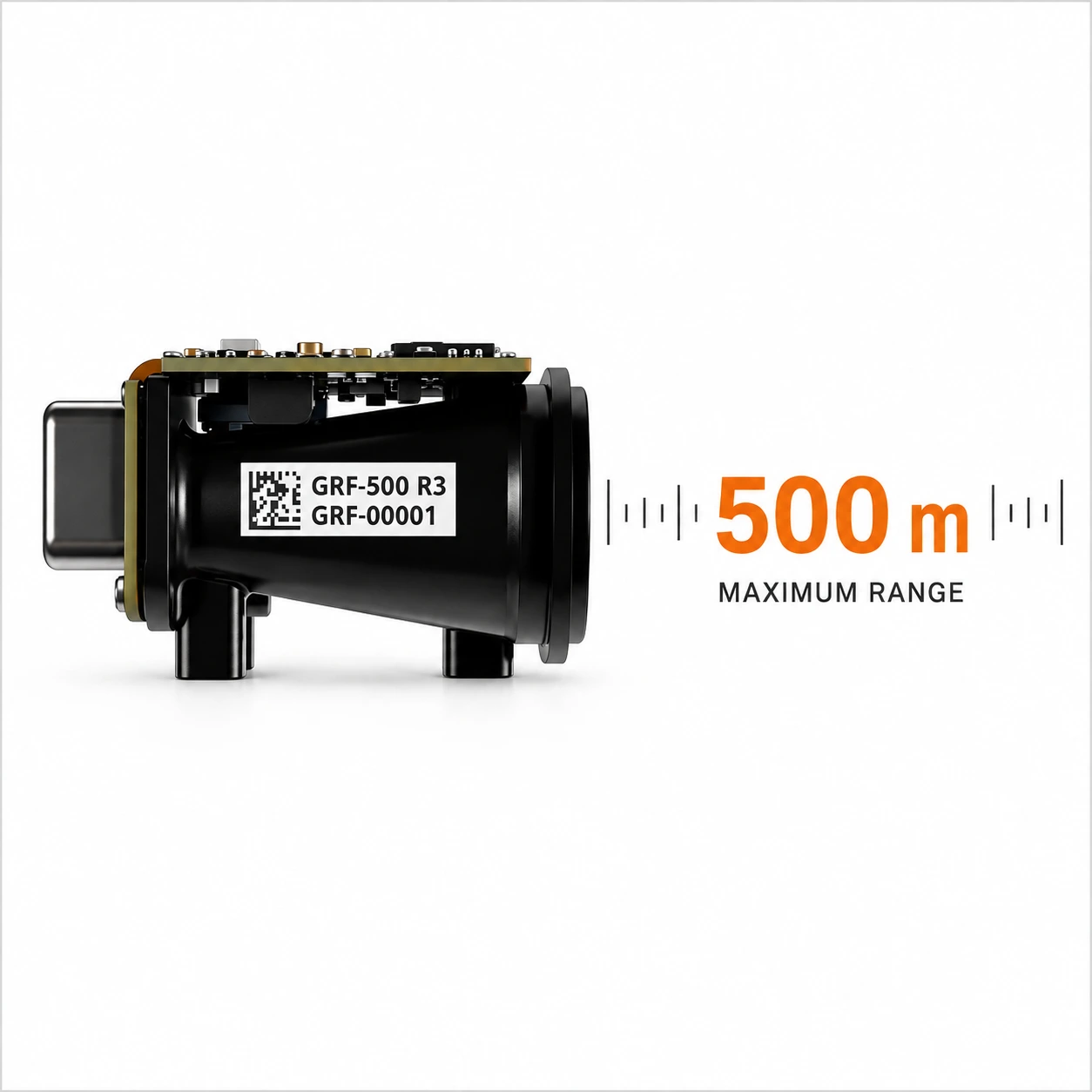

LightWare GRF-500 is a compact 500 m laser rangefinder designed for integration with EO/IR gimbals and other systems where long-range distance measurement is required without adding significant weight.
About This Product
The GRF-500 uses a 905 nm laser to measure target distance using time-of-flight technology. Its compact 10.7 g form factor makes it suitable for space- and weight-constrained gimbal systems. It can measure distances up to 500 m under the manufacturer’s specified test conditions and provides configurable measurement rates from 0.5 to 10 readings per second.
Key Features
- Up to 500 m ranging capability
- Extremely lightweight 10.7 g design
- Compact form factor for gimbal integration
- 905 nm laser
- Adjustable update rate
- USB, UART and I²C interfaces
- 3.3 V TTL with 5 V tolerance
- Designed for EO/IR payload integration
- Suitable for AGL measurement
- Useful for security and surveillance applications
- Low power design for UAV applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | GRF-500 |
| Product Type | Laser Rangefinder |
| LiDAR Type | Static Single Beam |
| Measurement Range | 0.2–500 m |
| Range Test Condition | 5 Hz, 40% albedo, 23 km visibility, 4 × 4 m target |
| Wavelength | 905 nm |
| Update Rate | 0.5–10 readings/sec |
| Accuracy | ±50 cm (1 sigma) |
| Weight | 10.7 g |
| Dimensions | 35 × 31 × 21 mm |
| Mechanical Boresight | ±1.5° |
| Interfaces | USB, Serial UART & I²C |
| Logic Level | 3.3 V TTL, 5 V tolerant |
| Operating Temperature | -20°C to +60°C |
| Laser Safety | Class 1M |
| Pulse Width | 36 ns |
| Pulse Frequency | 20 kHz |
| Average Laser Power | 2.0 mW |
