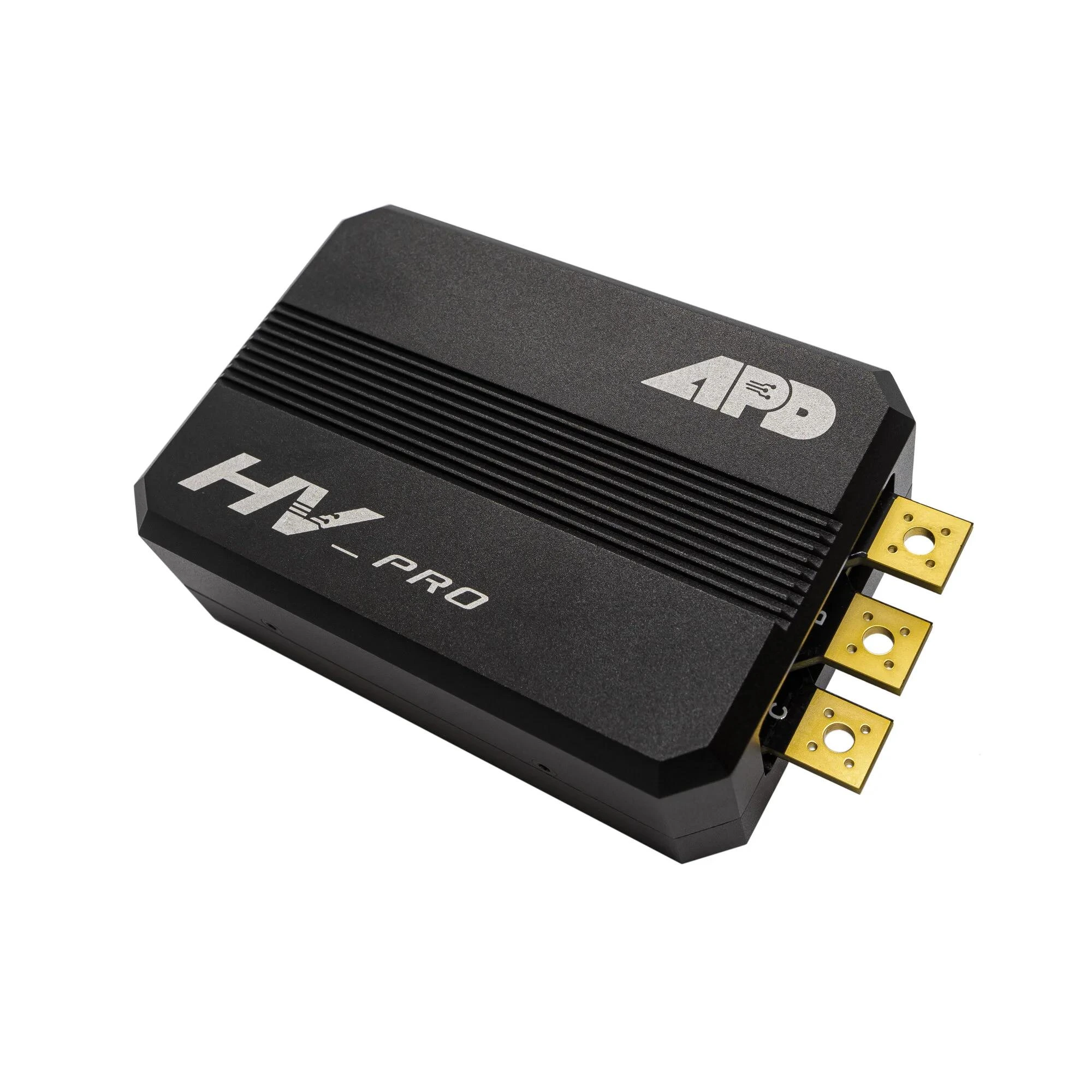

About This Product
The APD HV 14S is a high-current electronic speed controller designed for demanding electric propulsion systems. It manages motor power with responsive throttle control and configurable operating modes, making it suitable for heavy-duty multirotor and other UAV applications when matched with the correct motor and battery setup.
Features
- Supports battery systems up to 14S.
- High-current capability for demanding propulsion systems.
- Configurable operating modes, including multirotor mode.
- Adjustable motor timing and PWM output frequency.
- Onboard memory for recording operating data.
- Firmware updates and configuration through a micro-USB connection.
- Designed and manufactured in Australia.
Technical Specifications
| Specification | Details |
|---|---|
| Product type | Electronic Speed Controller (ESC) |
| Brand | APD |
| Model | HV 14S / HV_Pro 14S — confirm exact version |
| Maximum battery voltage | 60V |
| Maximum battery cells | 14S LiPo |
| Continuous current | 240A |
| Burst current | 360A |
| Maximum power | Up to 30kW, model specification |
| Control input | PWM |
| Maximum standard PWM update rate | Up to 500Hz |
| Throttle resolution | 12-bit |
| Data logging | Onboard flash memory |
| Configuration | APD configuration tool via micro-USB |
| Dimensions | Verify exact version before publishing |
| Weight | Verify exact version before publishing |
