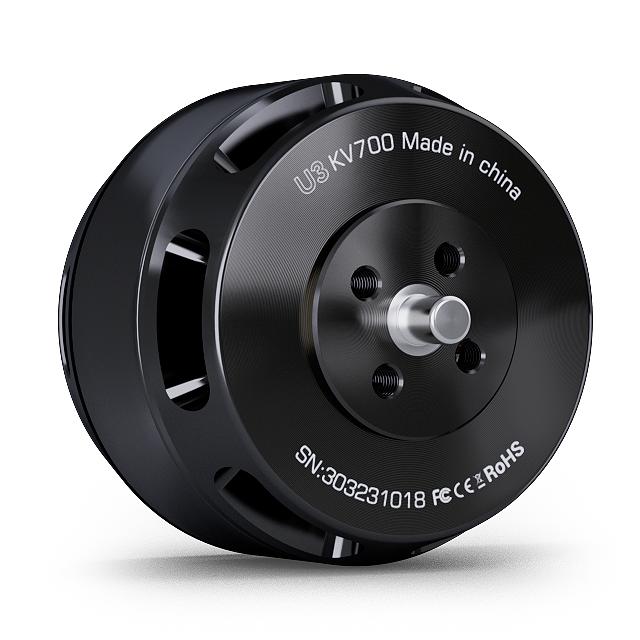

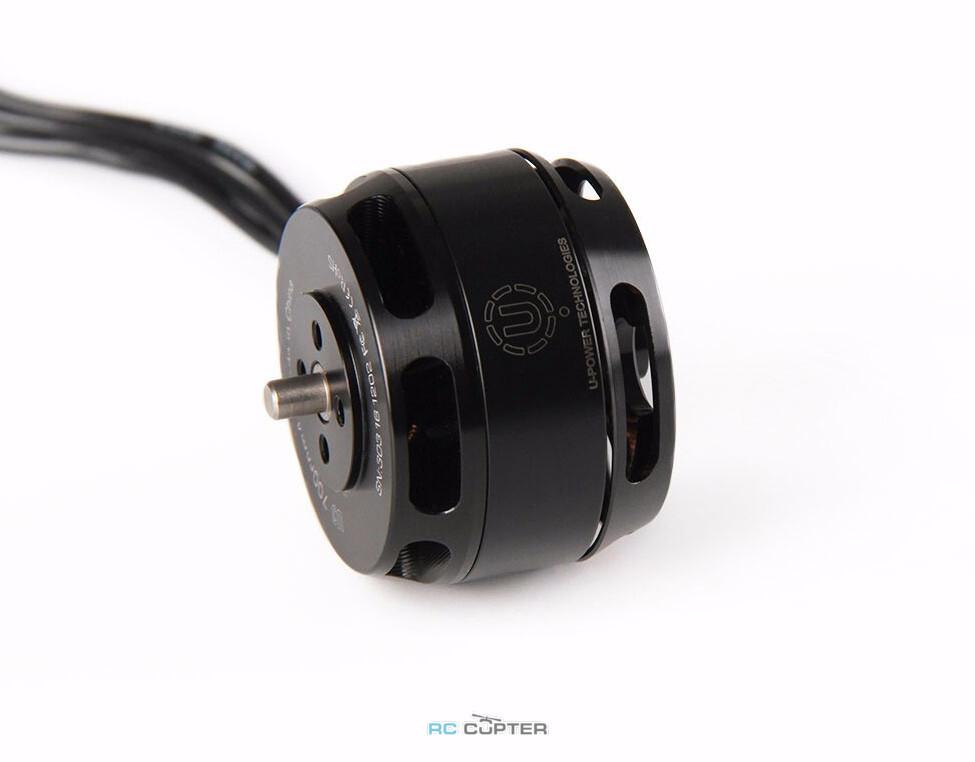

T Motor U3 Power Type Motor KV700

Short Description

The T-Motor U3 KV700 is a lightweight, high-efficiency brushless UAV motor engineered for multirotor drones, providing smooth performance, dependable thrust, and long-lasting reliability.

Category: Motor

Tag: T-Motor U3 U3 KV700 Power Type Motor Brushless Motor UAV Motor

Description

About this Item

The T-Motor U3 Power Type Motor KV700 is a high-efficiency brushless motor designed for professional multirotor UAVs and aerial platforms. It delivers stable thrust, smooth power output, and reliable performance for demanding applications such as aerial photography, surveying, inspection, agriculture, and commercial drone operations. Its lightweight construction, precision bearings, and optimized cooling system help improve flight efficiency and extend motor life.

Features

High-efficiency brushless outrunner motor
Optimized for multirotor UAV platforms
Precision-balanced rotor for smooth operation
Water- and dust-resistant construction
Advanced cooling design for improved heat dissipation
High-quality bearings for low noise and long service life
Lightweight design for better flight endurance
Stable thrust with low power consumption
Easy installation and maintenance
Suitable for professional and commercial drone applications

Specifications

Specification	Details
Product Type	Brushless UAV Motor
Model	T-Motor U3 Power Type
KV Rating	700KV
Motor Type	Brushless Outrunner
Battery Compatibility	3S–4S LiPo
Maximum Power	500W
Maximum Continuous Current	25A
Maximum Thrust	Up to 1.8kg
Weight	Approx. 97g (without cable), 128g (with cable)
Shaft Diameter	4mm
Motor Dimensions	Ø41.8 × 30.75mm
Recommended Propellers	12×4, 13×4.4 Carbon Fiber
Applications	Multirotor UAVs, Aerial Photography, Surveying, Agriculture, Inspection, Delivery Drones
