T Motor U5 Power U-Type Motor KV400
₹12,300.00

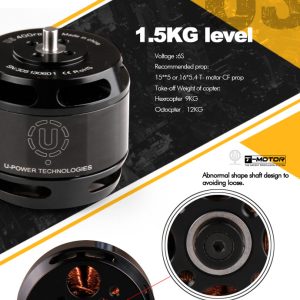

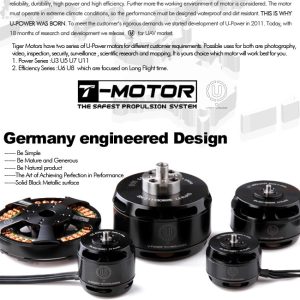

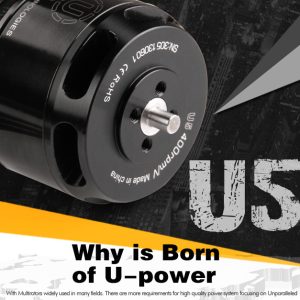

The T-MOTOR U5 KV400 is a high-efficiency U-Type brushless motor designed for industrial UAV applications. With a 12N14P configuration, 3–8S LiPo support and 5 mm shaft, it is suitable for aerial photography, delivery, agriculture and other professional drone platforms.
Out of stock
About the Product

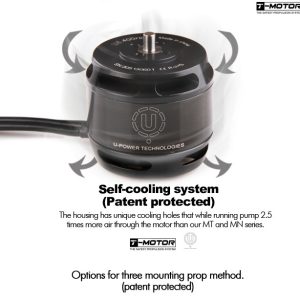

The U5 Power Type uses a vented motor housing to improve airflow around the motor. Its precision-wound construction, high-temperature copper windings and large imported bearing are designed for smooth operation and extended service life. T-MOTOR lists a maximum thrust of 2.85 kg for the U5 KV400.
Key Features
- 400KV brushless UAV motor
- U-Type Power Series
- 12N14P configuration
- 3–8S LiPo compatible
- 5 mm shaft
- Water- and dust-resistant construction
- Airflow-optimized side openings
- High-temperature varnished copper winding
- Precision-wound silicon steel laminations
- Large imported bearing
- Designed for smooth and relatively quiet operation
- Maximum thrust: 2.85 kg under manufacturer test conditions
Technical Specifications
| Specification | U5 KV400 |
|---|---|
| Motor Type | Brushless Outrunner |
| KV Rating | 400KV |
| Configuration | 12N14P |
| Motor Dimensions | Φ42.5 × 37.5 mm |
| Shaft Diameter | 5 mm |
| Internal Resistance | 116 mΩ |
| Weight Without Cable | 156 g |
| Weight With Cable | 195 g |
| Cable Length | 600 mm |
| Wire Gauge | 16 AWG |
| Battery | 3–8S LiPo |
| Idle Current @ 10V | 0.3 A |
| Max Continuous Current / 180s | 30 A |
| Max Continuous Power / 180s | 850 W |
