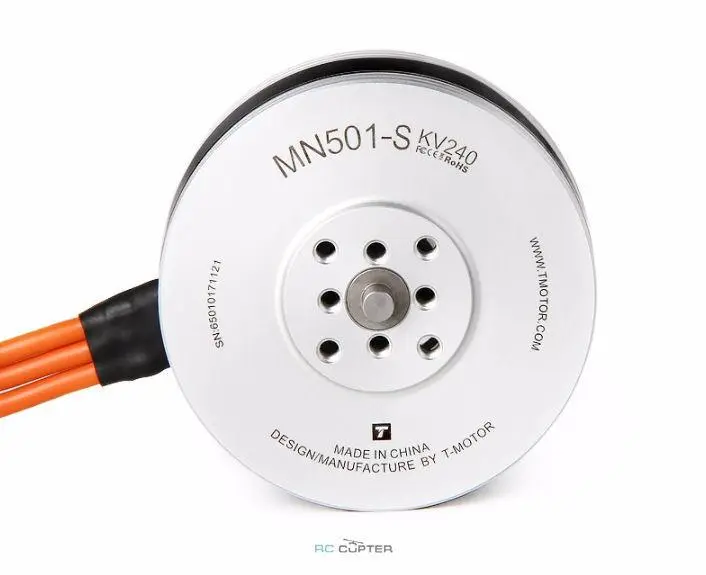

T Motor MN501-S IP45 Multirotor Fixed Wing Motor KV240
The T-MOTOR MN501-S KV240 is an IP45-rated Navigator Series brushless motor designed for multirotor, VTOL and fixed-wing UAVs. It supports 6–12S LiPo batteries and provides high-power propulsion with dust, water and corrosion resistance.
About the Product
The MN501-S KV240 combines a high-temperature-resistant motor construction with centrifugal cooling and an IP45-rated enclosure. Its 24N28P configuration, 170 g weight including cable and 4/6 mm shaft arrangement make it suitable for demanding UAV propulsion systems.
Key Features
- 240KV brushless UAV motor
- Navigator Series design
- IP45 dust and water protection
- 24N28P configuration
- Centrifugal cooling system
- 180°C-rated magnets
- 220°C high-temperature-resistant copper wire
- Imported 696ZZ bearing
- Anti-corrosion construction
- 6–12S LiPo compatibility
- 4 mm external / 6 mm internal shaft
- 16 AWG × 150 mm cable
- Suitable for multirotor, VTOL and fixed-wing UAVs
Technical Specifications
| Specification | MN501-S KV240 |
|---|---|
| Motor Type | Brushless Outrunner |
| KV Rating | 240KV |
| Configuration | 24N28P |
| Motor Dimensions | Φ55.6 × 33.9 mm |
| Shaft Diameter | IN: 6 mm / OUT: 4 mm |
| Bearing | 696ZZ |
| Magnet Temperature Rating | 180°C |
| Copper Wire Rating | 220°C, Class C |
| Cooling | Centrifugal Cooling |
| Protection Rating | IP45 |
| Lead Cable | 16 AWG × 150 mm |
| Weight incl. Cable | 170 g |
| Battery | 6–12S LiPo |
| Idle Current @ 18V | 0.9 A |
| Peak Current / 180s | 25 A |
| Maximum Power / 180s | 1200 W |
| Internal Resistance | 85 mΩ |
| Rotor Dynamic Balance | ≤5 mg |
| Motor Dynamic Balance | ≤10 mg |
| Package Weight | 350 g |
