About This Product

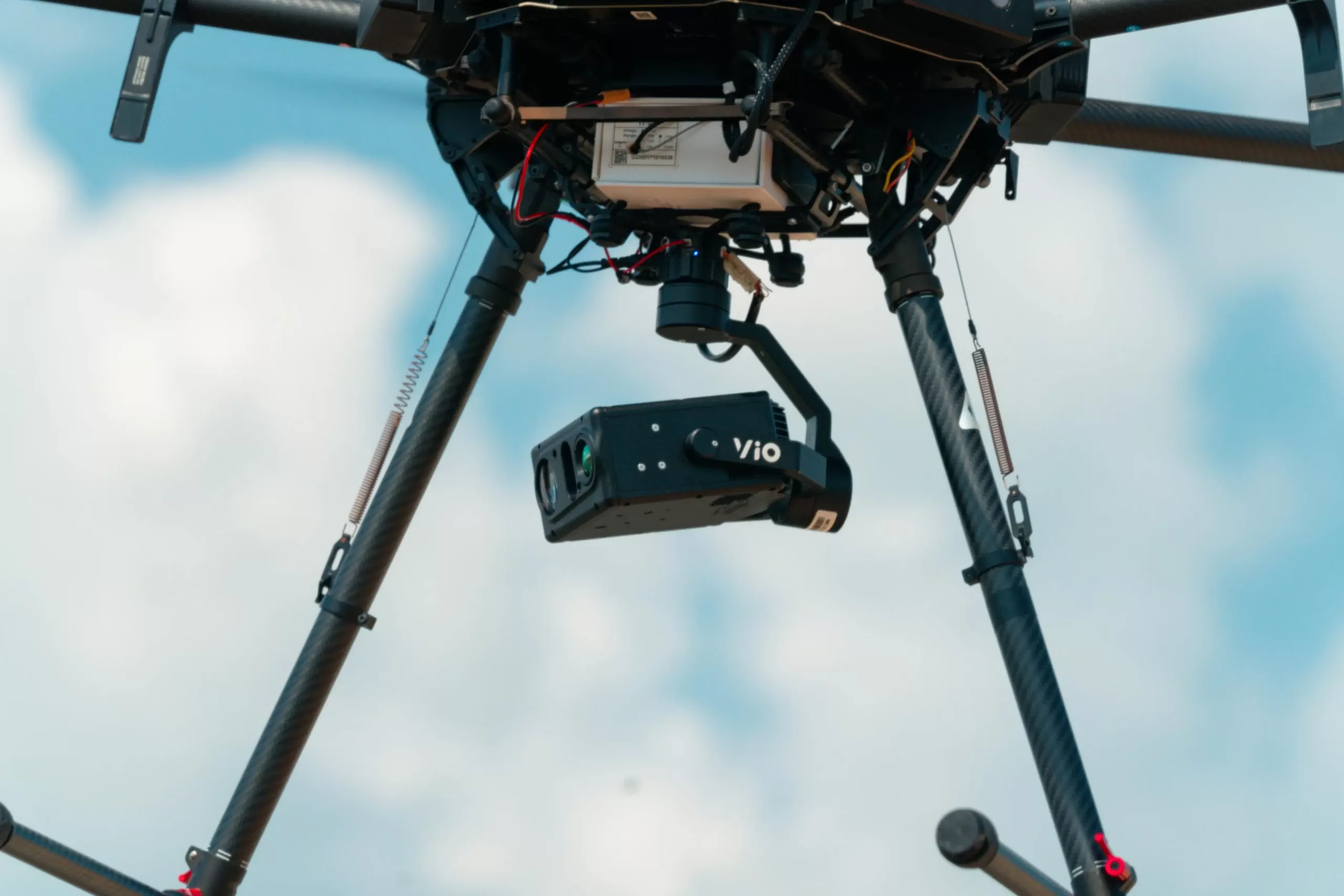

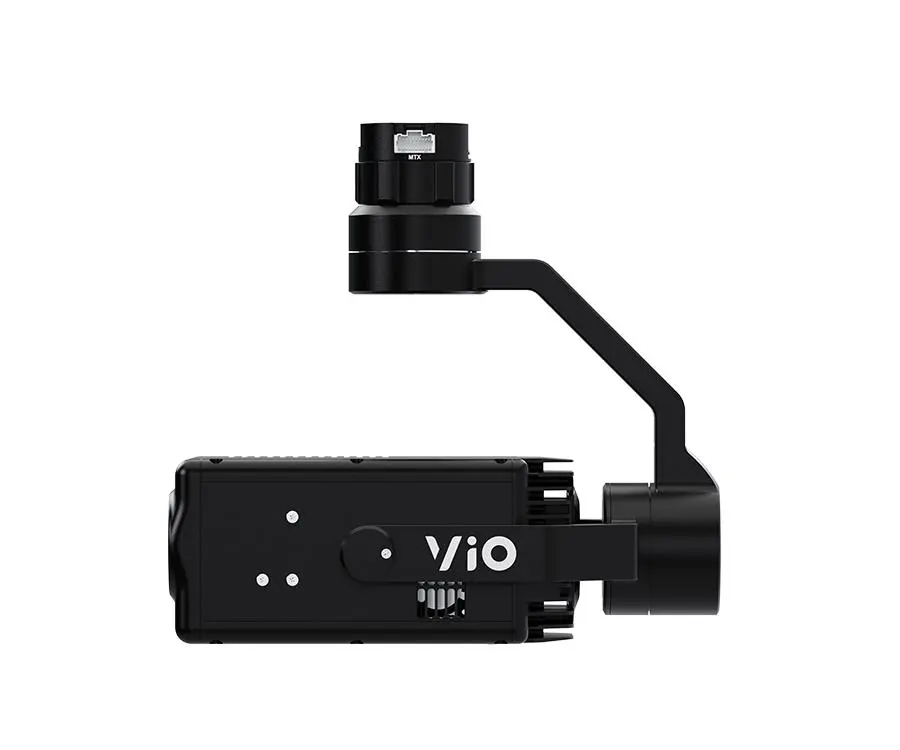

The Gremsy VIO F1 is a professional EO/IR payload engineered for UAV missions that demand high-quality visible imaging, thermal observation, and accurate distance measurement in a single compact unit. Combining a stabilized 3-axis gimbal with a powerful zoom camera, radiometric thermal sensor, and integrated laser rangefinder, it enables drone operators to collect detailed aerial data in both daylight and low-visibility conditions. Its lightweight construction and seamless integration with professional flight controllers make it an ideal choice for industrial inspection, public safety, surveying, and security operations. This description is written in original wording and is not copied from any website.

Features

  • Compact all-in-one EO/IR payload
  • Precision 3-axis image stabilization
  • High-resolution 4K visible camera
  • Radiometric thermal imaging for accurate temperature monitoring
  • Integrated laser rangefinder for precise distance measurement
  • AI-assisted object detection and target tracking
  • Smooth video capture with minimal vibration
  • Compatible with professional UAV flight controllers
  • Rugged design for industrial field operations
  • Easy integration with commercial drone platforms

Specifications

Specification Details
Product Type EO/IR UAV Payload
Model VIO F1
Gimbal Stabilization 3-Axis
Payload Weight 854 g
Dimensions 173 × 148 × 159 mm
EO Camera 8.51 MP Sony CMOS
Video Resolution 4K UHD (3840 × 2160 @ 30 fps)
Optical Zoom 20×
Digital Zoom 12×
Super Resolution Zoom 30×
Maximum Combined Zoom 240×
Thermal Sensor FLIR Boson 640 Radiometric
Thermal Resolution 640 × 512
Thermal Frame Rate 60 Hz
Thermal Sensitivity ≤ 50 mK
Laser Rangefinder Up to 2400 m
Input Voltage 14.5–52 V DC
Video Output HDMI, RTSP
Communication UART, Ethernet, SBUS
Compatible Autopilot PX4, ArduPilot
Compatible Flight Controllers Pixhawk, CubePilot, Skynode
Storage microSD Card (up to 128 GB)
Operating Temperature -10°C to +50°C
