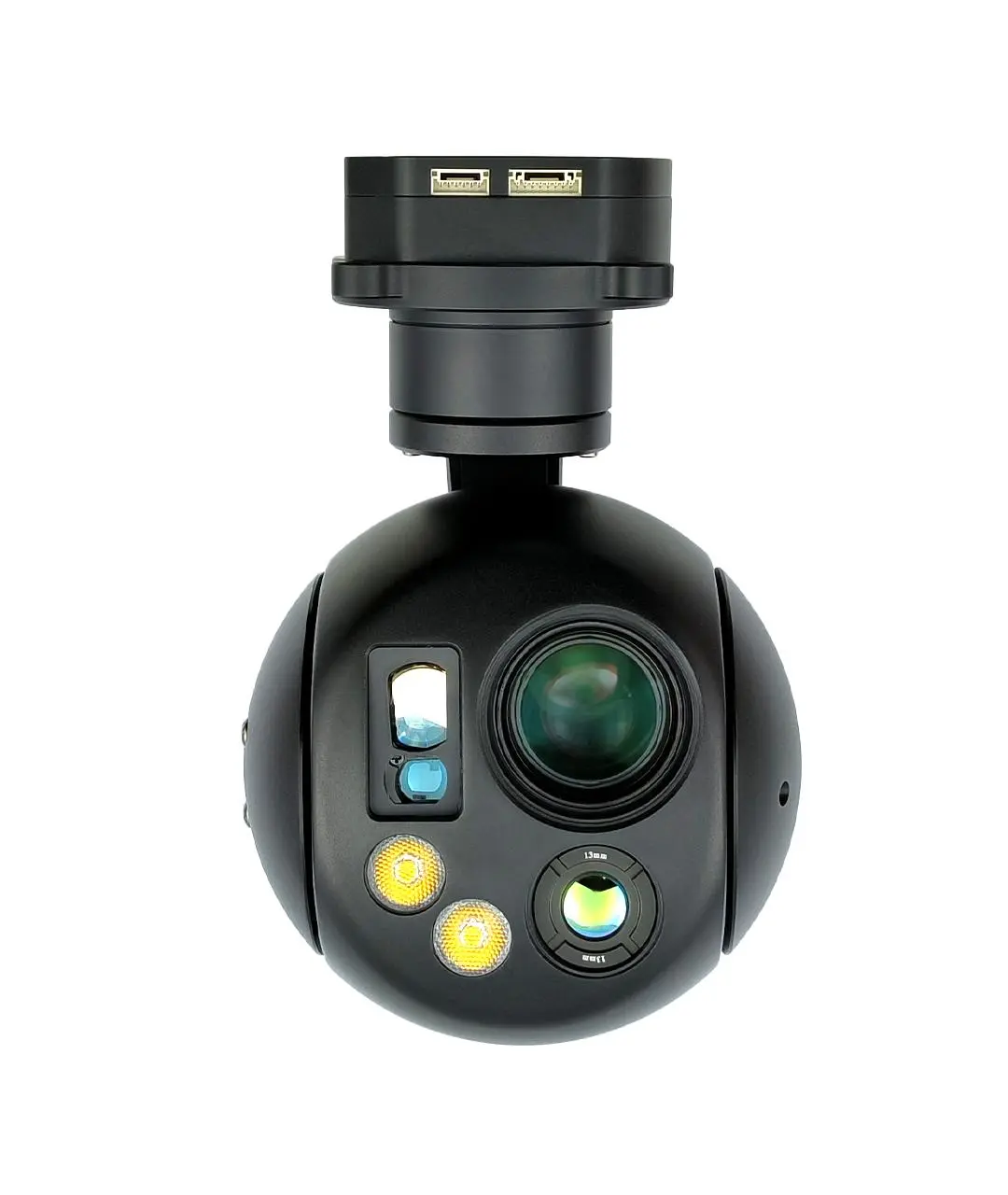

Four-in-one Gimbal Camera with dual output

About This Product

This four-in-one gimbal camera integrates visible-light imaging, thermal imaging, laser distance measurement and auxiliary illumination into a compact aerial imaging system. Its three-axis stabilization helps maintain clear footage during flight, while dual video interfaces provide flexibility for connecting compatible ground-control and monitoring systems.

Features

• Four integrated functions: visible camera, thermal camera, laser rangefinder and auxiliary lighting.
• 10× optical zoom with 9× digital zoom.
• Thermal imaging for low-light and heat-signature observation.
• Laser distance measurement up to 1,500 metres under specified conditions.
• Three-axis stabilized gimbal with encoder-based control.
• HDMI and Ethernet RTSP video output.
• Multiple picture-in-picture layouts and thermal colour palettes.
• Supports UART, UDP and S.BUS control.
• MicroSD recording and image capture.


  Technical Specifications

  Specification	Details
  Brand	TOPOTEK
  Model	KHY10A613D15N
  Product Type	Four-in-One Gimbal Camera
  Visible Camera	2MP
  Optical Zoom	10×
  Digital Zoom	9×
  Hybrid Zoom	90×
  Thermal Resolution	640 × 512 pixels
  Thermal Sensor	Uncooled VOx
  Thermal Lens	13mm
  Laser Rangefinder	5–1,500m
  Video Output	HDMI and Ethernet RTSP
  Network Video	Up to 1080p at 30fps
  Gimbal	Three-axis stabilization
  Control Interfaces	UART, UDP, S.BUS
  Input Voltage	DC 12–26.2V
  Static Power Consumption	Approximately 8W
  Weight	Approximately 630g; verify configuration
  Recording	MicroSD card
