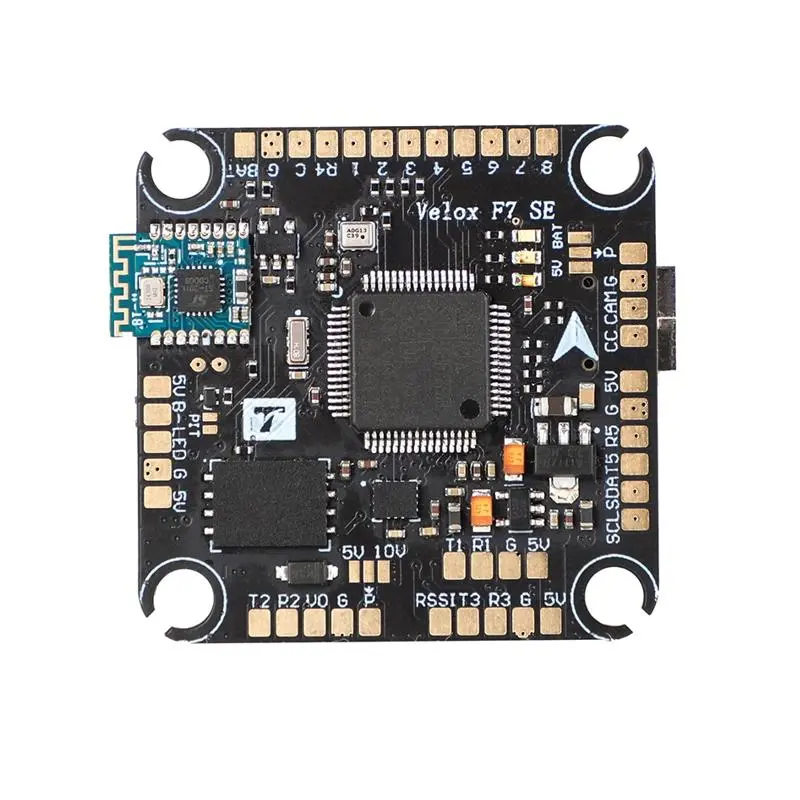

T-Motor Velox F7 SE Flight Controller
T-Motor Velox F7 SE is an F7-based flight controller with Bluetooth wireless setup, dual BEC outputs, 6 UARTs, 128MB Blackbox memory and support for up to 8 motors.
About This Product
The T-Motor Velox F7 SE is a compact flight controller designed for FPV and multirotor drone builds. It uses an STM32F722 processor and ICM-42688-P gyroscope, with Bluetooth connectivity for wireless parameter adjustment. The board also provides dual BEC outputs, multiple UARTs, 8-motor support, built-in barometer and a large 128MB Blackbox memory.
Features
- STM32F722 F7 processor
- ICM-42688-P gyroscope
- Built-in Bluetooth
- Wireless parameter adjustment
- Supports up to 8 motors
- Dual BEC power outputs
- Built-in barometer
- 128MB Blackbox memory
- HD and analog video support
- USB Type-C interface
- 6 UARTs
- Voltage-selectable outputs
- 30.5 × 30.5 mm mounting pattern
- Designed for 170–450 class multirotors
Technical Specifications
| Specification | Details |
|---|---|
| Model | Velox F7 SE |
| MCU | STM32F722 |
| Firmware | STM32F7X2 |
| Gyroscope | ICM-42688-P (SPI) |
| BEC Output | 5V / 2A + 10V / 1.5A |
| UARTs | 6 |
| Bluetooth | TMFC |
| OSD | AT7456E + HD |
| Blackbox Memory | 128MB |
| USB | Type-C |
| Input Voltage | 12–27V (3–6S) |
| Motor Support | Up to 8 Motors |
| Mounting Holes | 30.5 × 30.5 mm / Ø4 mm |
| Dimensions | 37.5 × 40 × 6.4 mm |
| Weight | Approx. 9 g |
| Application | 170–450 Multirotor |
