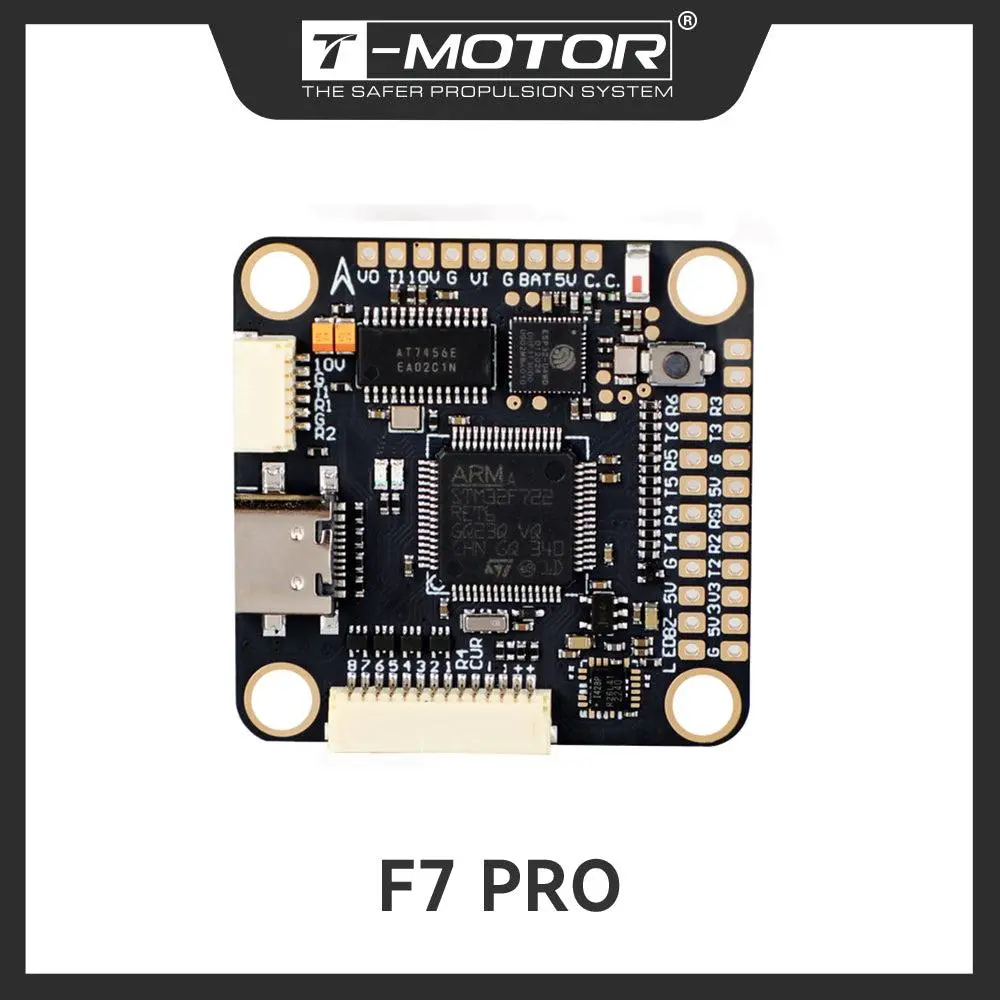

T-Motor F7 PRO Flight Controller
T-Motor F7 PRO is a wireless-enabled FPV flight controller featuring WiFi, Bluetooth, eight motor outputs, Betaflight and INAV support, and a 30.5 × 30.5 mm mounting pattern for cinematic and advanced drone builds.
About This Product
The T-Motor F7 PRO is a full-featured flight controller designed for cinematic FPV and advanced multirotor builds. It combines an F7 processor with built-in WiFi and Bluetooth, allowing users to configure Betaflight wirelessly, update firmware, adjust motor direction, and analyze Blackbox data without repeatedly connecting a USB cable. It also supports DJI Air Unit integration and up to eight motor outputs.
Features
- Built-in WiFi and Bluetooth
- Wireless Betaflight configuration
- Wireless firmware updates
- Wireless motor-direction setup
- Wireless Blackbox data analysis
- Up to 8 motor outputs
- 8 PWM outputs
- DJI Air Unit plug-and-play support
- Betaflight and INAV compatibility
- SpeedyBee App compatibility
- Built-in barometer
- Built-in OSD
- USB Type-C connection
- VTX switch function
Technical Specifications
| Specification | Details |
|---|---|
| Model | F7 PRO |
| MCU | STM32F722 RET6 |
| Gyro / IMU | ICM42688 |
| Barometer | BMP280 |
| OSD | AT7456 |
| Input Voltage | 3–8S LiPo |
| Motor Outputs | M1–M8 / 8 outputs |
| UART | 6 |
| Blackbox | 16MB Flash |
| BEC | 10V/2A, 5V/3A |
| Wireless | WiFi + Bluetooth |
| Firmware | Betaflight / INAV |
| USB | Type-C |
| Mounting Pattern | 30.5 × 30.5 mm / M3 |
| Dimensions | 37 × 37 × 7.5 mm |
| Weight | Approx. 8.1 g |
| DJI Air Unit | Supported |
| SpeedyBee App | Supported |
