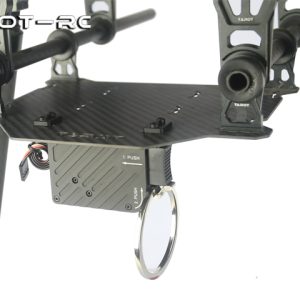

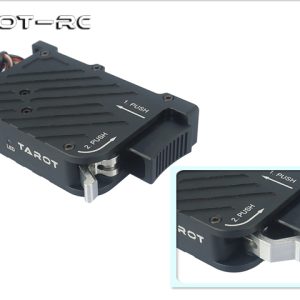

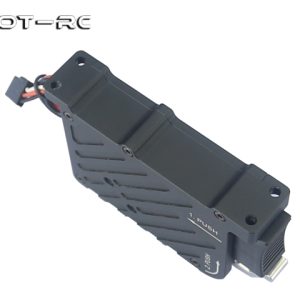

TAROT TL2962 Drone Dispenser Thrower In India

Product operating instructions and LED status light description:

1: When the PWM signal input value remains at 0-59% of the stroke, the LED red light is always on/the device does not operate;
2: When the PWM signal input value reaches 60-100% of the stroke, the LED green light flashes once/the device delivery switch is turned on once; after the delivery is over, the LED light keeps the green light steady on;
3: When the device does not detect the PWM signal input, the LED red light flashes (2 times/second);
4: During power-on initialization, if the detected PWM signal input value is at 60-100% of the stroke, the LED green light flashes (2 times/second), until the PWM signal input value is adjusted to 0-59% of the stroke to trigger the first item operation.
