Seagull #GPK RTK/PPK/MB GNSS Receiver

#GPK – Extreme Positioning.

Seagull #GPK is a high precision single band GNSS receiver which can operate in multiple modes in order to give you the utmost flexibility and precision for your UAV platform! #GPK is capable of tracking the following satellite signals – GPS L1C/A, GLONASS L1OF, BEIDOU B1I.

• Multiple modes – Real Time Kinematic, Post Processed Kinematic, Moving Baseline
• High refresh rate – 4Hz MB, 5Hz RTK, 10Hz RAW, 10Hz GNSS
• High position accuracy – up to 1 cm!
• Easy configuration – via SD card
• Two operational modes – BASE or ROVER
• On-board PPK logging, #MAP-X2 compatible, Multiple Flight Controllers supported

#GPK RTK/PPK/MB SOLUTION

Representation of two #GPK modules operating in RTK mode with #RADIO modules used for data transmission

What it does

Seagull #GPK supports the following functions

• BASE / ROVER ( #GPK can operate either as a BASE or ROVER )
• RTK ( Real Time Kinematic navigation for your drone and logging – at 5Hz )
• PPK ( Post Processed Kinematic BASE logging and ROVER logging+navigation with #MAP-X2 – at 10Hz )
• MB ( Moving Baseline navigation and logging, requires 2 x #GPK modules – at 4Hz )
• GNSS ( Non-Kinematic mode navigation and logging – at 10Hz )

What it supports

The following hardware is supported

Flight Controllers:

• Pixhawk 1
• Pixhawk 2.1
• Pixracer
• APM 2.6
• APM 2.5

– all of the ardupilot based FCs’ are supported as well any FC that is capable of utilizing UBX/NMEA messages for navigation

Seagull:

• #RADIO
• #MAP-X2

What you get

The following is part of this product

• 1 x Seagull #GPK

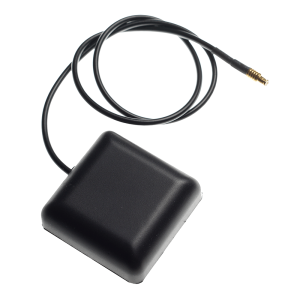

• 1 x GPS antenna for #GPK
• 1 x 16GB micro SD card ( w.  fullsize adaptor )

 – all the support you could wish for !

Specifications

Details for Seagull #GPK

• Ublox NEO-M8P-2 GNSS receiver. Supports following signals L1C/A, L1OF, B1I – GPS/GLONASS/BEIDOU
• Refresh rate: up to 10Hz
• Voltage: 3.9 – 12V (5 volts recommended – do NOT exceed 12V!)
• Current draw: 80mA MIN, 100mA AVERAGE, 120mA MAX
• Dimensions: 45mm x 41mm x 11mm
• Weight: 16g
