Product Description:

Description:

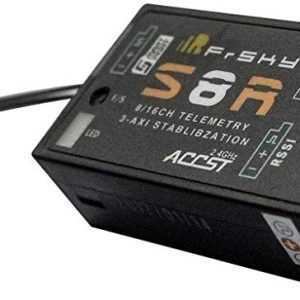

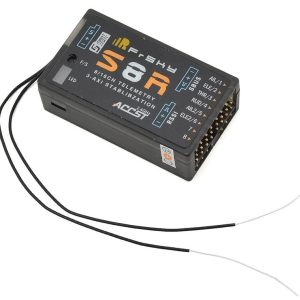

The S8R is a S-Series FrSky receiver with integrated 3-axis stabilization. For conventional fixed wing and glider models it supports stabilization, automatic level, hover and Knife-Edge flight modes. For Delta Wings or Flying Wings and V-Tail models it supports stabilization and automatic level flight modes. You can choose the model type and edit all these functions via S8R.Config or S8R.lua. The S8R can also be used as a standard receiver for 8 X Series channels, if required. The FrSky S8R receiver is the ideal alternative to the popular X8R RC receiver if you need a flight controller with three axis gyro and accelerometer.

Specifications:

•   Dimension: 46.47×26.78×14.12 mm (L×W×H)
•   Weight: 14g
•   Number of Channels: 8/16CH (1-8ch from conventional channel outputs, 1-16ch from SBUS output)
•   With RSSI PWM output on board: PWM voltage output(0-3.3V), 100Hz, 1500±500us
•   Operating Current: 120mA@5V
•   Operating Voltage Range: 4.0-10V
•   Operating Range: full range
•   Gyroscope Measurement Range: ±2000dps
•   Accelerometer Measurement Range: ±4g
•   Firmware Upgradeable
•   Compatibility: FrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16 mode

(PS: S8R-EU only works with FrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16-EU mode)

Features:

•   Built-in 3-axis gyroscope and 3-axis accelerometer sensor module
•   Built-in RSSI PWM output(0-3.3V)
•   Built-in battery voltage detection
•   Smart Port enabled
•   SBUS Port enabled
