APC 6×4E is a lightweight two-blade electric propeller with a 6-inch diameter and 4-inch pitch, suitable for compatible small electric aircraft and FPV propulsion systems.

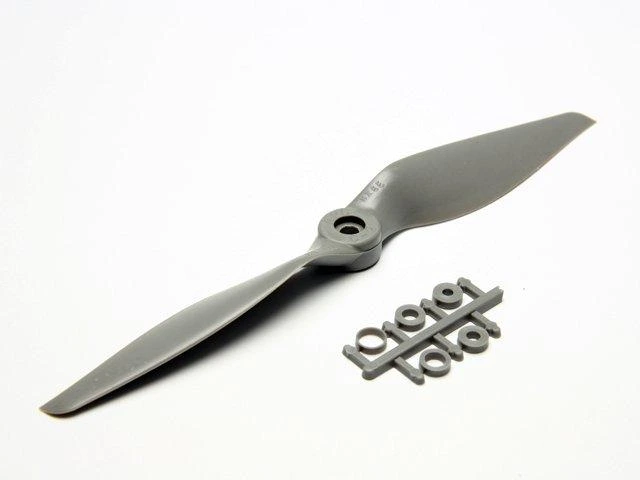

The APC 6×4E is a compact two-blade electric aircraft propeller intended for smaller electric-powered aircraft and FPV applications. Its 6-inch diameter and 4-inch pitch provide a practical combination for electric propulsion systems where a small, lightweight propeller is required. The propeller is designed around the Speed 400 electric category and uses interchangeable adapter rings to accommodate the appropriate motor shaft. The APC product code is LP06040E.
| Specification | Details |
|---|---|
| Brand | APC |
| Product Code | LP06040E |
| Model | 6×4E |
| Type | Electric Propeller |
| Diameter | 6 in / 152.4 mm |
| Pitch | 4 in / 101.6 mm |
| Number of Blades | 2 |
| Rotation | Standard / CCW |
| Hub Diameter | 0.50 in / 12.7 mm |
| Hub Thickness | 0.25 in / 6.35 mm |
| Shaft Diameter | 1/4 in / 6.35 mm |
| Weight | 0.18 oz / approx. 5.1 g |
| Colour | Grey |
| Adapter Rings | LPAR18SF / LPARM12SF |
| Application | Electric Aircraft / FPV |
