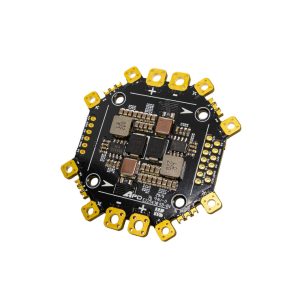

Signal and telemetry lines are sandwiched between the Negative (GND) layers to shield them from switching noise at high power levels. Negative (GND) layers on top to shield the Flight Controller from switching noise.

Further, it has double sided main input power pads which can be soldered or bolted to. It allows for flight controller mounting with standard 30.5mm x 30.5mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier

Manufactured using ISOLA 185HR high-performance dielectric glass fiber to sustain continuous high-temperature scenarios.

Rest assured, your solder tabs won’t fail, even with 500A loads!


  • Designed and manufactured in Australia using only the highest quality components
  • 8 Layers of 4oz copper
  •  4S-12S input
  •  12V @ 3A switching regulator
  •  5V @ 3A switching regulator
  • Overcurrent and short circuit protection on both 5V and 12V regulators
  •  Thermal relief on all solder tabs to allow for easier soldering
  • 2.5mm thickness for strength and reliability
  •  58mm x 58mm in size
  • PCB rated for 180°C (356°F) continuous


  • Weight:  50 grams
  • Dimensions:  75x75x20mm
