. The new XT90 plug is used to support two 6S batteries in series
.The new XT90 plug is used to support two 6S batteries in series, and a 10AWG power cord is reserved..

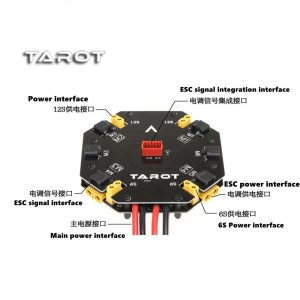

.Reserve two 6S power supply interfaces / two 12S power supply interfaces. The brushless ESC signal socket use a customed anti mis-insertion design..
.The customized ESC red signal hub also prevents mis-insertion design to guides accurate wiring to prevent the vibration of the UAV from affecting the reliability of the contacts. The overall details show the quality and ingenuity..
.Remote Control Peripherals/Devices:12S 480A.
.Upgrade Parts/Accessories:High Current Distribution Board.

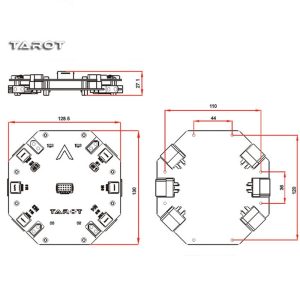

130 × 128.5× 27.1 MM（other dimensions please refer to the
Tips: Suitable for four-axis/six-axis drones and plant
protection machines with a wheelbase of more than one meter
Please compare the frame holes to ensure this power distribution
management board can be inst
Product manual :
The power distribution management module is suitable for large
and medium-sized drones such as plant protection machines.
Support four-axis / six-axis two drone installation, support 12S
power supply, the total current reaches 480A.The main power cord
is recommended to be soldered with the AS150 fireproof plug and
the XT150 plug (optional) to prevent mis-insertion.
When installing, pay attention to the direction of the arrow
facing forward and the drone. According to the different models,
follow the identification wiring. The whole set has two 6SXT60
equipment power supplies and two 12SXT60 equipment power supplies
(Note: here 12SXT60 reserved power supply can not be used as an
ESC power supply interface, can be connected to devices
supporting 12S voltage)
(Note: The power distribution management module 12A power
supply is composed of two 6S batteries connected in series, so
two batteries need to be plugged in to supply power. If only 6S
power supply is needed, only the red positive pole on the left
side and the black negative pole on the right side are connected.
The two red and black lines are short-circuited tandem points and
do not need to be connected.)
