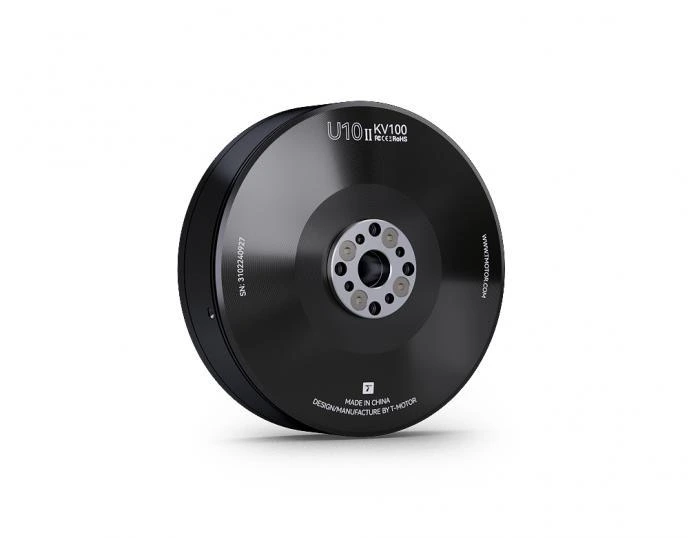

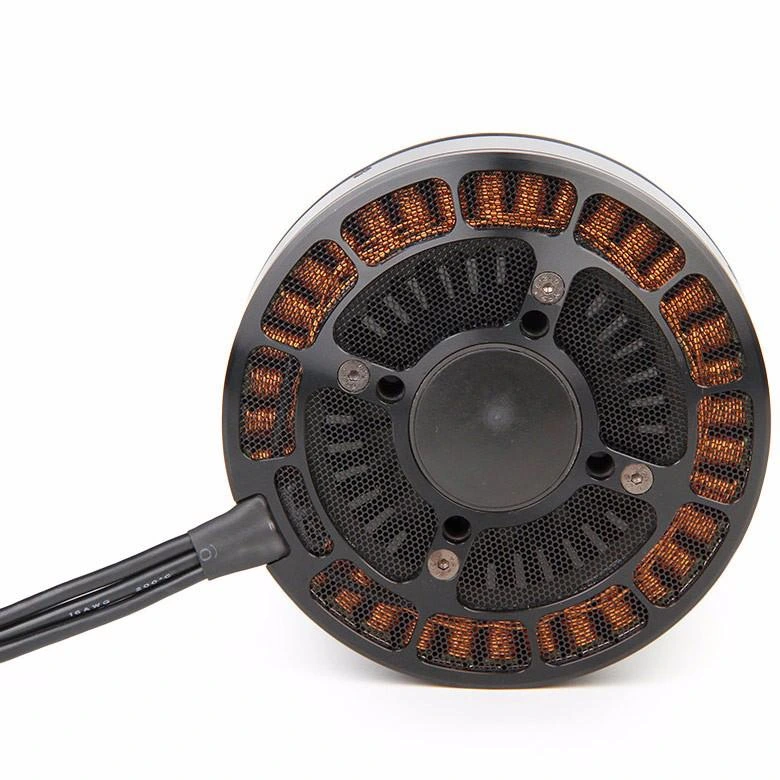

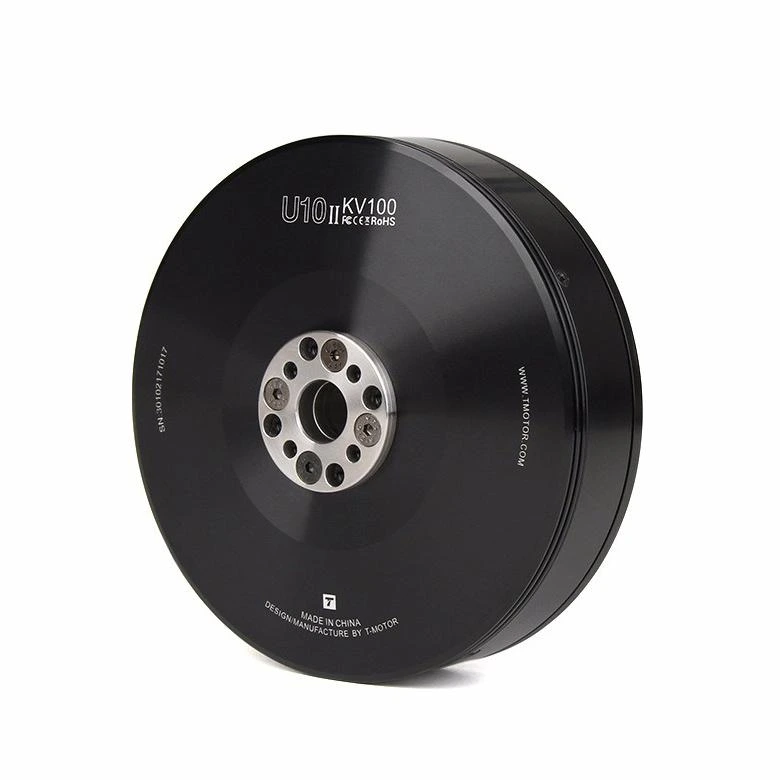

T Motor U10Ⅱ Efficiency Multirotor Motor KV100

Short Description

The T-Motor U10Ⅱ KV100 is a high-efficiency brushless multirotor motor designed for 12S UAV platforms, delivering exceptional thrust, reliable performance, and extended flight endurance for commercial and industrial drones.

Category: Motor

Tag: T-Motor U10Ⅱ U10 II U10Ⅱ KV100 KV100 Motor

Description

About this Item

The T-Motor U10Ⅱ Efficiency Multirotor Motor KV100 is a premium brushless motor developed for industrial multirotor UAVs and heavy-lift drone platforms. Engineered for maximum efficiency and long flight endurance, it delivers smooth power output, high thrust, and reliable operation under demanding conditions. Its IP45-rated construction, precision-balanced rotor, and optimized cooling system make it ideal for professional applications such as aerial surveying, mapping, cargo transport, inspection, and agricultural missions.

Features

High-efficiency brushless outrunner motor
Optimized for heavy-lift multirotor UAVs
12S LiPo battery compatibility
IP45-rated dust and splash resistance
Precision-balanced rotor for smooth and stable operation
Advanced cooling design for improved thermal performance
High-quality bearings for long operational life
Low vibration and quiet operation
Lightweight yet durable aluminum alloy construction
Ideal for industrial, agricultural, mapping, and inspection drones

Specifications

Specification	Details
Product Type	Brushless UAV Motor
Model	T-Motor U10Ⅱ Efficiency
KV Rating	100KV
Motor Type	Brushless Outrunner
Battery Compatibility	12S LiPo
Protection Rating	IP45
Maximum Power	1600W
Peak Current (180s)	32.4A
Motor Weight	Approx. 415g (including cable)
Shaft Diameter	15mm
Motor Dimensions	Ø98.6 × 33.1mm
Recommended Propeller	28–30 Inch Carbon Fiber
Applications	Heavy-Lift UAVs, Industrial Drones, Mapping, Surveying, Inspection, Agriculture, Cargo Drones
