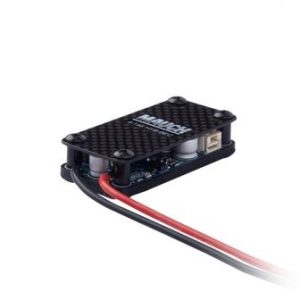

Product description :

Input 4-14S LiPo / max. 60V.

Output 5.30V / 3A -> +/- 0.05V –> Ripple 1mV @ 1.5A output current.

Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2/X8 and output conector with Molex Clik-Mate 4p.

Blue power “ON’ LED.

59mm x 29mm x 13mm / 26g with enclosure(without cables)

Delivery in PP box: 55 x 55 x 20mm

Scope of delivery:

1x  021: PL 4-14S HYB-BEC / 1x 5.3V / 3A

1x  040: PL – Series sensor cable / L=150mm

1x  Enclosure

REM: The BEC is delivered without an flight controller cable, so please selct the correct cable to match your FC:

041: DF13-6p -> Pixhawk 1 / APM… etc.

042: Molex Clik-Mate 2.0 – 6p -> Pixhawk 2.1

043: JST-GH-6p -> Pixhawk 3… etc
