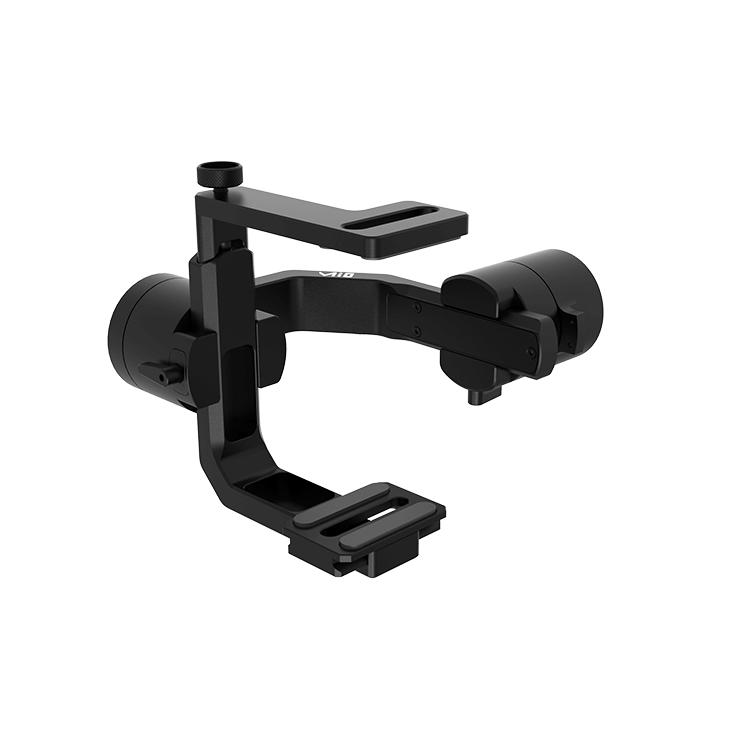

Gremsy Two-Axis Mio

Gremsy Two-Axis Mio is a lightweight front-mounted camera stabilizer designed for small UAVs. Its compact construction helps drone developers integrate cameras and sensors while keeping the overall payload weight low.

Category: Light Gimbal

Tags: 2-Axis Gimbal, Gremsy, Light Gimbal, Mio Gimbal, Two-Axis Mio, UAV Gimbal

Description

About This Product

The Two-Axis Mio is designed for UAV applications where a compact and lightweight camera stabilization system is required. Its two-axis stabilization controls tilt and roll, helping maintain a steady camera position while the aircraft is moving. The front-mount configuration makes it suitable for applications where the camera needs a clear forward-facing view. Its simple integration options and support for common UAV control systems make it useful for drone developers, system integrators, and industrial inspection platforms.

Features

2-axis camera stabilization
Lightweight 180 g construction
Front-mount configuration
Supports cameras and sensors up to 400 g
Follow, Mapping and Front operating modes
Built-in IMU sensor
14-bit encoder motors
USB Type-C connection
MAVLink support
SBUS and PPM control
Six AUX signal channels
Compatible with Pixhawk, CubePilot and Skynode platforms

Specifications

Specification	Details
Product Name	Two-Axis Mio
System Type	2-Axis Camera Stabilizer
Weight	180 g
Dimensions (D × W × H)	133 × 101 × 94 mm
Maximum Payload	400 g
Construction	Aluminum + Plastic
Input Voltage	14–52 V
Mounting	Front Mount
Tilt Controlled Range	±127°
Roll Controlled Range	±60°
Maximum Tilt Speed	100°/s
Maximum Roll Speed	100°/s
Angular Vibration	±0.02°
Static Current	400 mA @ 12 V
Dynamic Current	600 mA @ 12 V
Maximum Locked Motor Current	1.7 A @ 12 V
Connections	USB 2.0 Type-C, UART, SBUS, PPM, Micro HDMI
Control	SBUS, MAVLink
AUX Signals	6
Supported Flight Controllers	Pixhawk, CubePilot, Skynode
Damping Options	Standard / Custom
Operating Temperature	-15°C to +50°C
