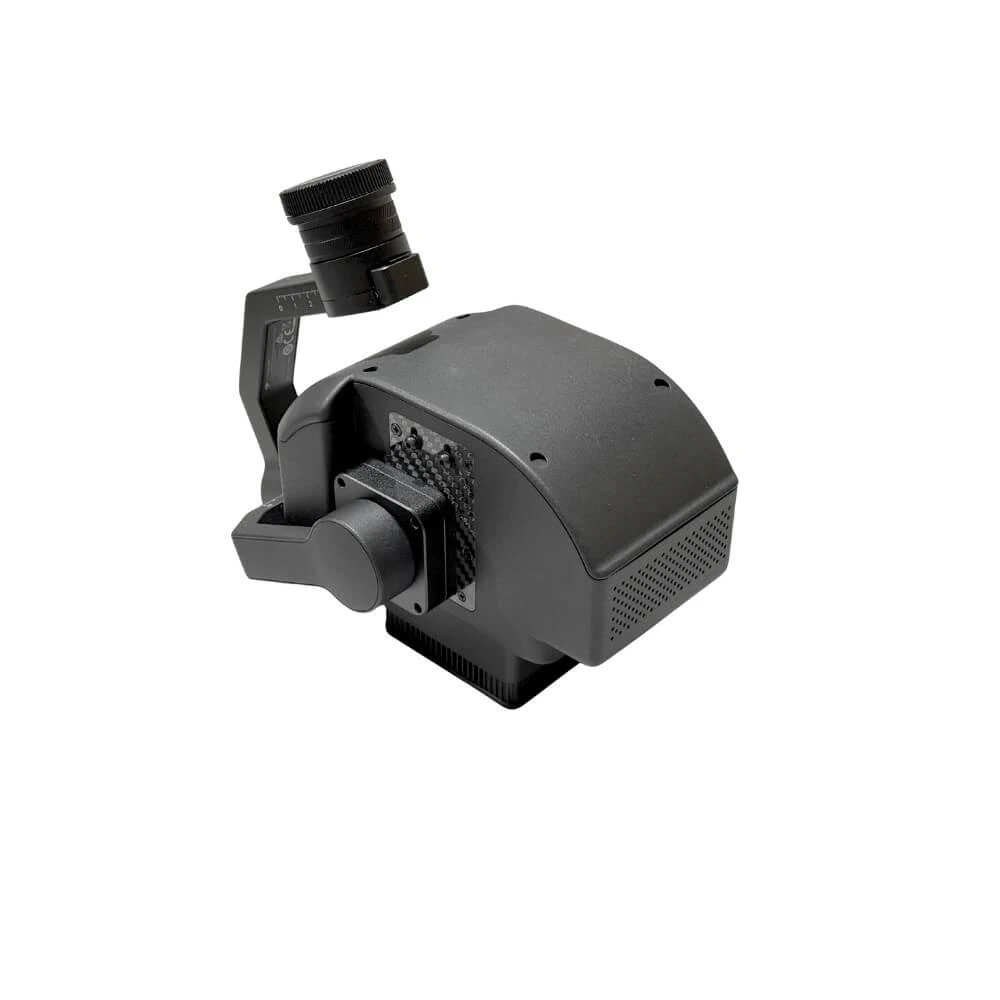

FIGSPEC FS60-C Airborne Hyperspectral Camera

Brand: FIGSPEC / CHNSpec
Category: Camera or Accessories

About This Product

The FIGSPEC FS60-C is an airborne hyperspectral imaging camera designed to capture detailed spectral information from objects and surfaces during UAV surveys. Instead of recording only conventional RGB images, it separates incoming light into a large number of narrow spectral bands, allowing subtle differences in vegetation, soil, water and other materials to be studied.

The system uses a transmission-grating optical design and an onboard processing unit, making it suitable for real-time hyperspectral data acquisition from drone platforms. Its combination of 1200 spectral bands, fine spectral resolution and high-speed imaging makes it suitable for professional remote-sensing work.

Features

• 1200 narrow spectral bands
• 400–1000 nm spectral coverage
• 2.5 nm spectral resolution
• Up to 1920 spatial pixels
• 5.86 µm pixel size
• Full-band imaging at 128 fps
• CMOS detector
• Transmission-grating spectroscopy
• High signal-to-noise ratio of 600:1
• Low stray-light level
• C-Mount lens interface
• USB / Gigabit network data connectivity depending on configuration
• Built-in embedded processor
• 512 GB SSD onboard storage
• Passive-light operation without an integrated illumination source
• Real-time data observation through supported ground-station workflow
• Reflectance and radiometric correction support
• Designed for UAV-based hyperspectral surveying
