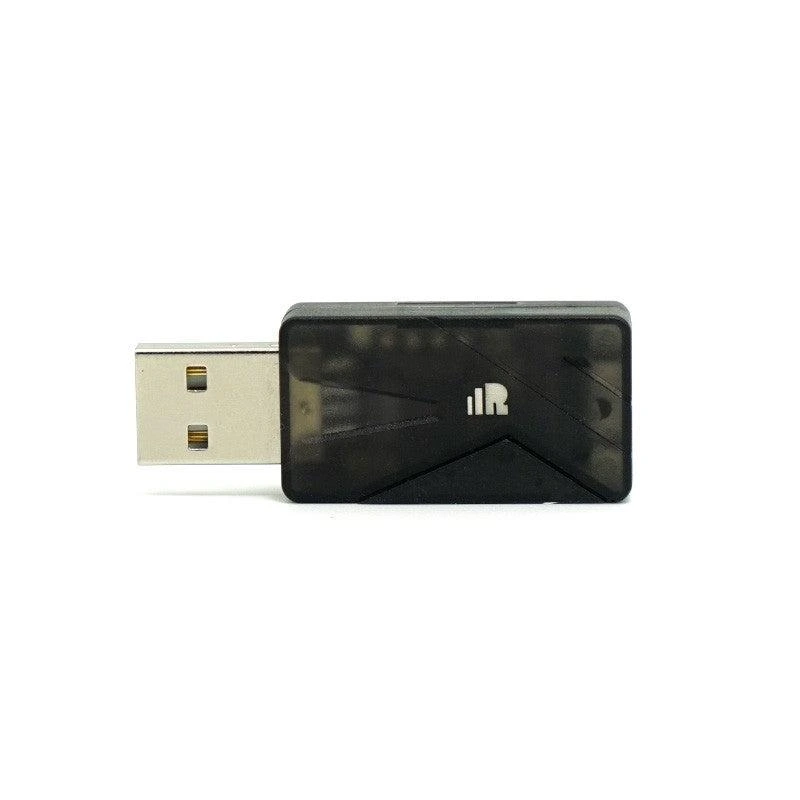

FrSky XSR-SIM Wireless Simulator Dongle

FrSky XSR-SIM is a compact wireless USB interface that allows a compatible FrSky transmitter to control an RC or FPV flight simulator without a wired connection.

Category: Cable & Accessories

Tags: FrSky, USB Simulator Dongle, Wireless Simulator Dongle, XSR-SIM

Description

About This Product

The FrSky XSR-SIM Wireless Simulator Dongle is designed for simulator practice using compatible FrSky radio systems. It connects to a computer through USB and receives control commands wirelessly from the transmitter, giving the user more freedom of movement during simulation. The dongle works as a USB HID joystick, allowing simulator software to recognize transmitter inputs as controller commands. Its small form factor and low power requirement make it convenient for regular simulator training.

Features

Wireless connection between transmitter and computer
USB HID joystick interface
Compact and lightweight design
Compatible with FrSky D16 transmitter/module systems
Supports proportional and switch channel outputs
Low power consumption
Firmware upgrade capability through S.Port
Suitable for RC and FPV flight simulation
Simple USB connection to a computer
LED indicators for operating and binding status

Specifications

Specification	Details
Brand	FrSky
Model	XSR-SIM
Product Type	Wireless Simulator USB Dongle
Connector	USB Type-A
USB Protocol	USB HID Joystick
Size (L × W × H)	48.2 × 19.1 × 9.2 mm
Weight	6.2 g
Power Requirement	Typically 55 mA
Compatible Radio System	FrSky Mode D16
Channel Output	Up to 8 proportional + 8 switch channels*
Firmware Upgrade	Via S.Port
Compatible OS	Windows, Linux, Mac OS X
