About this Item

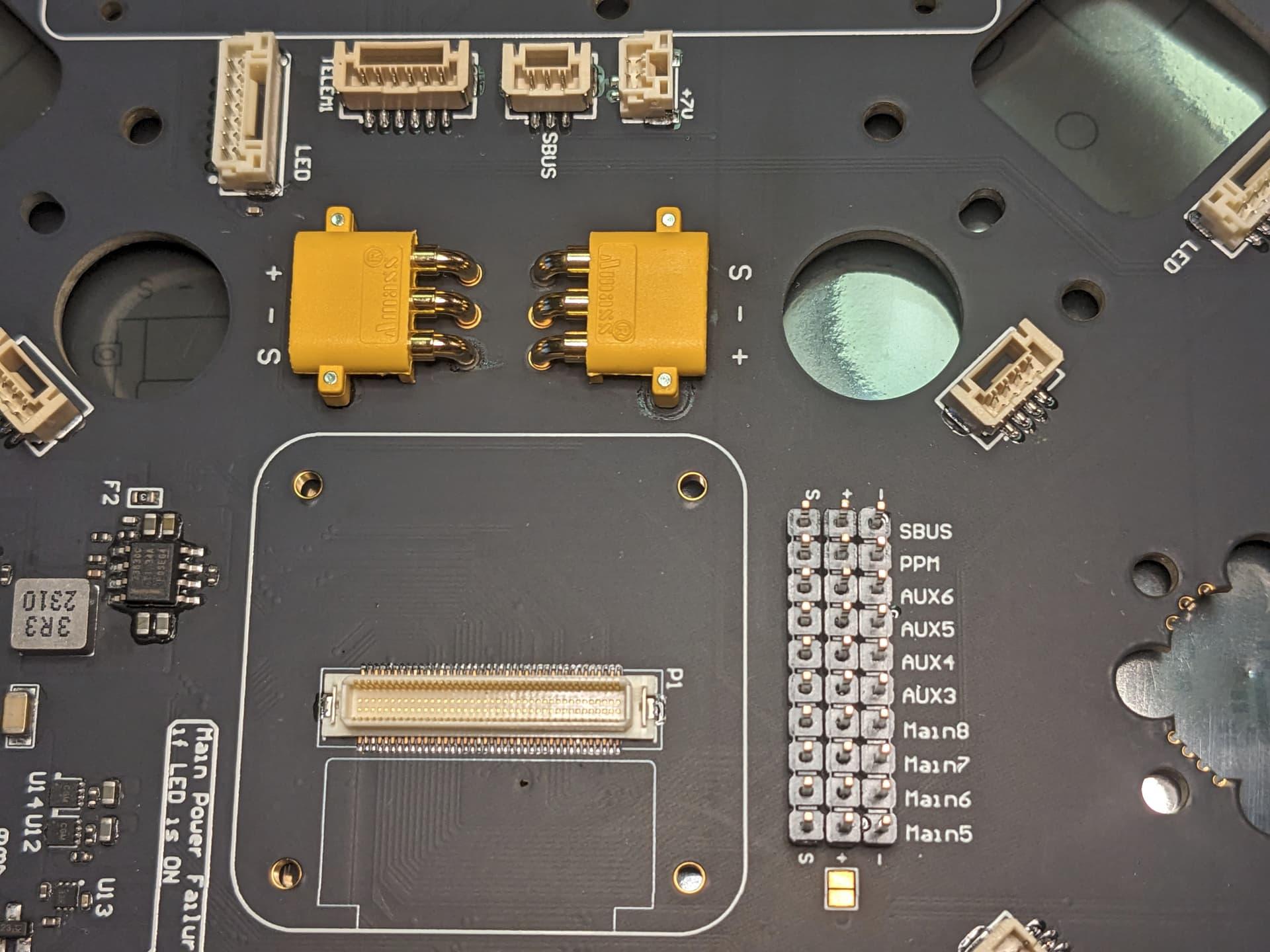

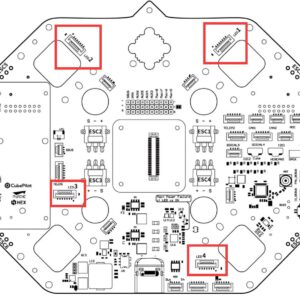

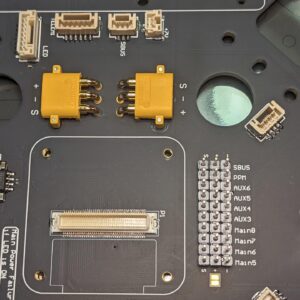

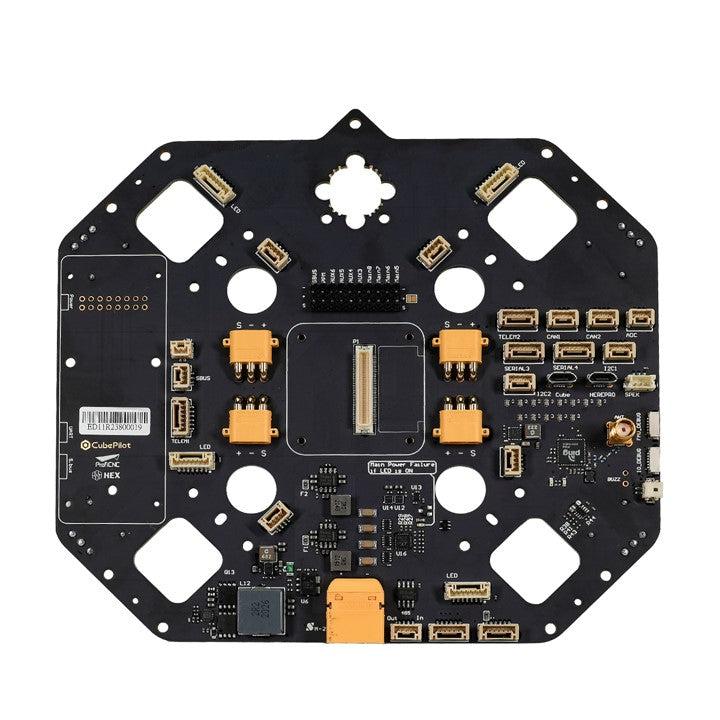

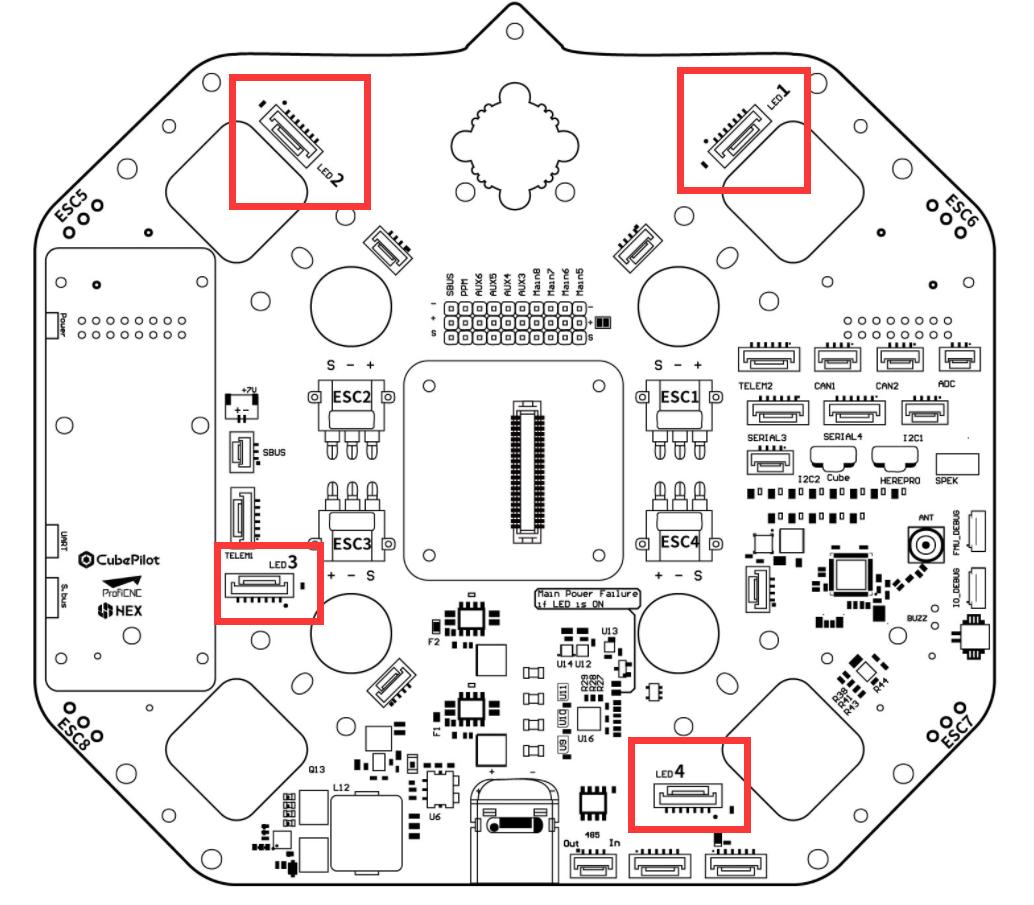

The EDU450 Carrier Board is an integrated UAV carrier board designed specifically for the Hexsoon EDU-450 drone platform. It combines power distribution, redundant power supply, battery monitoring, and multiple communication interfaces into a single board, reducing wiring complexity and simplifying drone assembly. It is fully compatible with CubePilot Cube flight controllers and is ideal for professional multirotor UAV applications.
Features
- Integrated power distribution board (PDB)
- Supports CubePilot Cube flight controllers
- Redundant power supply for improved flight reliability
- Built-in voltage and current sensing
- Up to 100A continuous current handling
- Supports up to 8S LiPo batteries
- Multiple UART, CAN, I2C, SPI, and RS485 interfaces
- Dedicated ESC power and signal connections
- Compact design that minimizes wiring
- Optimized for quadcopter, X8, and octocopter platforms
Specifications
| Specification | Details |
|---|---|
| Product Type | UAV Carrier Board |
| Model | EDU450 Carrier Board |
| Battery Support | Up to 8S LiPo |
| Continuous Current | Up to 100A |
| Power Distribution | Integrated PDB |
| Power Monitoring | Built-in Voltage & Current Sensor |
| BEC Output | 5V / 10A and 7V / 1.5A |
| Interfaces | UART, CAN, I2C, SPI, RS485 |
| Flight Controller Compatibility | CubePilot Cube Series |
| Compatible Frame | Hexsoon EDU-450 |
| Applications | Multirotor UAVs, Industrial Drones, Research & Education |
