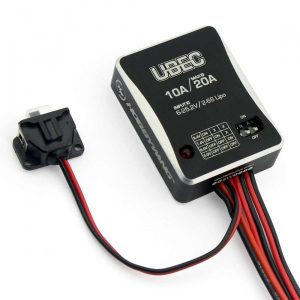

What is Hobbywing 10A / 20A UBEC ?
This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from 2-6S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and keeps providing the stable current output of up to 10Amp.
As the UBEC has such a powerful output capability, so it’s particularly applicable for large helicopters and fixed-wing aircraft.
Features of 10A/20A UBEC
It adopted the advanced DC-DC regulator chip with conversion efficiency exceeds 90%.
- 4 options for the output voltage, applicable for all kinds of receivers/gyros/servos, etc.
- It owns BEC shoot-through protection, which prevent the input voltage from directly flowing to the output end and causing damages to receivers, servos and other electronic devices.
- It featured other protections like over-current protection, short-circuit protection (at the output end) and thermal protection make the use more safe and reliable.
- 2 cables are connected in parallel at the output end of the UBEC, allow larger current to
flow into the receiver.
- It has one status LED, which lights up when the UBEC works normally.
- The external switch can turn on/off the UBEC easily.
- Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction.
Specification
Model: UBEC-10A
Input Voltage: 6V-25.2V (2-6S LiPo)
Output Voltage: 5.0V/6.0V/7.4V/8.4V
Output Amperage: Continuous Current: 10A, Peak Current: 20A
Dimension: 43.1×32.3×12.5mm
Weight: 36g
