Product Description :

Description

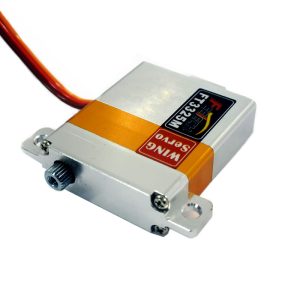

Metal servo type micro with a supply voltage range from 4.8 V to 6 V.

Specification

• Supply voltage: from 4.8 V to 6 V
• Range of motion: 0 ° to 120 °
• Type: digital
• The maximum range pulse: 900 – 2100 µs
• Type of bearing: 2BB
• Gear type: metal
• Motor type: carbon
• Cable length: approx. 200 mm

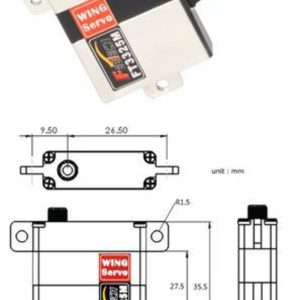

• Dimensions: 30,0 x 10,0 x 35.5 mm
• Weight: 26.2 g

• Settings for 4.8 V:
  • Torque: 5.85 kg*cm (0,57 Nm)
  • Speed: 0.16 s/60°

• Settings for 6, V:
  • Torque: 7.21 kg*cm (0,71 Nm)
  • Speed: 0.13 sec/60°

• Complete set of servo horns, washers, and screws.
