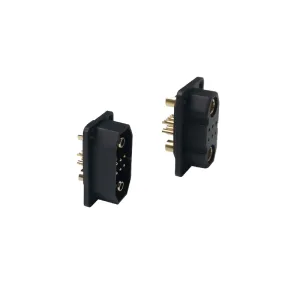

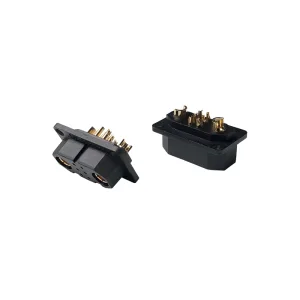

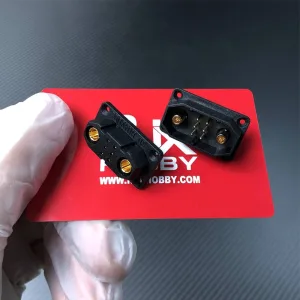

JX-6 6 Pins 6+2 Micro Connectors for UAV VTOL, Model Airplane, RC Vehicles, Boats, Turbine Jet, and RC DIY Plugs

The JX-6 6 Pins 6+2 Micro Connectors are high-performance connectors designed for reliable and efficient power transfer in UAVs, VTOL aircraft, RC vehicles, boats, turbine jets, and other RC DIY projects. Engineered with brass gold-plated contacts and durable PA plastic, these connectors ensure excellent conductivity, heat resistance, and durability for demanding applications.

Features

• High-Current Handling:
  • Instantaneous Current: 150A (big pins) / 7A (small pins)
  • Rated Current: 120A (big pins) / 5A (small pins)
• Durable Construction:
  • Contacts made of brass with gold plating for superior conductivity and corrosion resistance.
  • PA plastic housing with UL94 V0 flame retardant rating for safety and reliability.
• Wide Voltage Support: Rated for up to DC500V, suitable for high-performance systems.
• Low Impedance: Impedance as low as 0.3 mΩ for minimal power loss.
• Long Lifespan: Tested for 2000 mating cycles, ensuring long-term usability.
• Temperature Range: Operates reliably between -20°C and 120°C, perfect for varied environments.
• Versatile Applications: Ideal for RC airplanes, RC vehicles, LiPo batteries, electric vehicles, and other electronic projects.

Specifications

• Type: JX-6
• Metal Material: Brass Gold Plated
• Plastic Material: PA (UL94 V0 Flame Retardant)
• Instantaneous Current: 150A (big) / 7A (small)
• Rated Current: 120A (big) / 5A (small)
• Rated Voltage: DC500V
• Impedance: 0.3 mΩ
• Temperature Range: -20°C to 120°C
• Mating Cycles: 2000 times

Package Includes

• 1 Pair x JX-6 6 Pins 6+2 Micro Connectors
